Mac Studio (2022)
Specs / Apple / Mac Studio (2022)

Mac Studio (2022) Specifications

Complete Apple Mac Studio (2022) technical specifications · Released 2022 · model numbers, colors, storage, dimensions and hardware details.

Chip: Apple M1 Max chip; 10-core CPU with 8 performance cores and 2 efficiency cores; 24-core G… Display: Simultaneously supports up to five displays:; Support for up to four Pro Display XDRs (6K…
Check IMEI / Serial All specs
Display
Simultaneously supports up to five displays:; Support for up to four Pro Display XDRs (6K resolution at 60Hz …
Chip
Apple M1 Max chip; 10-core CPU with 8 performance cores and 2 efficiency cores; 24-core GPU; 16-core Neural Engine; 400…
Storage / Colors
512GB, 1TB, 2TB, 4TB, 8TB · Silver
Weight / OS
2700 g · macOS

Apple Mac Studio (2022) technical specifications

This page contains complete technical specifications for Apple Mac Studio (2022), including display, chip, storage, colors, model numbers, dimensions, weight, operating system, connectivity, battery information and other hardware details.

Use this information to compare Apple devices, identify the exact model, check compatibility and verify key hardware features before service, repair, resale or purchase.

iFinish

  • Silver

↔Size and Weight

  • Height: 3.7 inches (9.5 cm)
  • Width: 7.7 inches (19.7 cm)
  • Depth: 7.7 inches (19.7 cm)
  • Weight (M1 Max): 5.9 pounds (2.7 kg)2
  • Weight (M1 Ultra): 7.9 pounds (3.6 kg)2

⚙Chip

  • Apple M1 Max chip
  • 10-core CPU with 8 performance cores and 2 efficiency cores
  • 24-core GPU
  • 16-core Neural Engine
  • 400GB/s memory bandwidth
  • Media engineHardware-accelerated H.264, HEVC, ProRes, and ProRes RAWVideo decode engineTwo video encode enginesTwo ProRes encode and decode engines
  • Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
  • Video decode engine
  • Two video encode engines
  • Two ProRes encode and decode engines
  • Configurable to:M1 Max with 10-core CPU, 32-core GPU, and 16-core Neural Engine
  • M1 Max with 10-core CPU, 32-core GPU, and 16-core Neural Engine
  • Apple M1 Ultra chip
  • 20-core CPU with 16 performance cores and 4 efficiency cores
  • 48-core GPU
  • 32-core Neural Engine
  • 800GB/s memory bandwidth
  • Media engineHardware-accelerated H.264, HEVC, ProRes, and ProRes RAWTwo video decode enginesFour video encode enginesFour ProRes encode and decode engines
  • Two video decode engines
  • Four video encode engines
  • Four ProRes encode and decode engines
  • Configurable to:M1 Ultra with 20-core CPU, 64-core GPU, and 32-core Neural Engine
  • M1 Ultra with 20-core CPU, 64-core GPU, and 32-core Neural Engine

iOperating System

  • macOS
  • macOS is the most advanced desktop operating system in the world. macOS Sequoia helps you be productive and creative in new ways — with window tiling, major updates to Safari, iPhone Mirroring, and support for Apple Intelligence.7
  • Learn more about latest operating system
  • macOS User Guide

iAccessibility

  • Accessibility features help people with disabilities get the most out of their new Mac Studio. With built-in support for vision, hearing, mobility, and learning, you can create and do amazing things.
  • Learn more about Accessibility
  • Features include:
  • Voice Control
  • VoiceOver
  • Zoom
  • Increase Contrast
  • Reduce Motion
  • Siri and Dictation
  • Switch Control
  • Live Captions

iIn the Box

  • Mac Studio
  • Power cord

iAcoustic Performance

  • Declared noise emission values in accordance with ECMA-109
  • Sound Power LevelL W A,m (B)Sound Pressure LevelOperator PositionL p A,m (dB)Idle2.5 (K V = 0.3)15Wireless web2.5 (K V = 0.3)15
  • L W A,m is the mean A-weighted sound power level, rounded to the nearest 0.1 B.
  • L p A,m is the mean A-weighted sound pressure level measured at operator position (rounded to the nearest 1 dB).
  • 1 B (bel) = 10 dB (decibel)
  • K v is the statistical adder for computing upper-limit of A-weighted sound power level.
  • The quantity, L W A,c (formerly called L W Ad) may be computed from the sum of L W A,m and K v .
  • The wireless web test browses 6 tabs with a mix of content including media.
  • Configuration tested: Apple M1 Ultra, 20-core CPU / 48-core GPU, 64GB memory, 1TB storage.

iAudio

  • Built-in speaker
  • 3.5 mm headphone jack with advanced support for high-impedance headphones
  • HDMI port supports multichannel audio output

iBuilt-in Apps3

  • App Store
  • Books
  • Calendar
  • Contacts
  • FaceTime
  • Find My
  • Freeform
  • GarageBand
  • Home
  • iMovie
  • Keynote
  • Mail
  • Maps
  • Messages
  • Music
  • News
  • Notes
  • Numbers
  • Pages
  • Photo Booth
  • Photos
  • Podcasts
  • Preview
  • QuickTime Player
  • Reminders
  • Safari
  • Shortcuts
  • Siri
  • Stocks
  • Time Machine
  • TV
  • Voice Memos

iCommunications

  • Wi-Fi
  • 802.11ax Wi-Fi 6 wireless networking
  • IEEE 802.11a/b/g/n/ac compatible
  • Bluetooth
  • Bluetooth 5.0 wireless technology
  • Ethernet
  • 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)

iConfigure to Order

  • Configure your Mac Studio with these options at apple.com:M1 Max with 10-core CPU, 32-core GPU, and 16-core Neural EngineM1 Ultra with 20-core CPU, 48-core GPU, and 32-core Neural EngineM1 Ultra with 20-core CPU, 64-core GPU, and 32-core Neural Engine64GB unified memory (M1 Max)128GB unified memory (M1 Ultra)1TB, 2TB, 4TB, or 8TB SSD
  • M1 Max with 10-core CPU, 32-core GPU, and 16-core Neural Engine
  • M1 Ultra with 20-core CPU, 48-core GPU, and 32-core Neural Engine
  • M1 Ultra with 20-core CPU, 64-core GPU, and 32-core Neural Engine
  • 64GB unified memory (M1 Max)
  • 128GB unified memory (M1 Ultra)
  • 1TB, 2TB, 4TB, or 8TB SSD

⌁Connections and Expansion

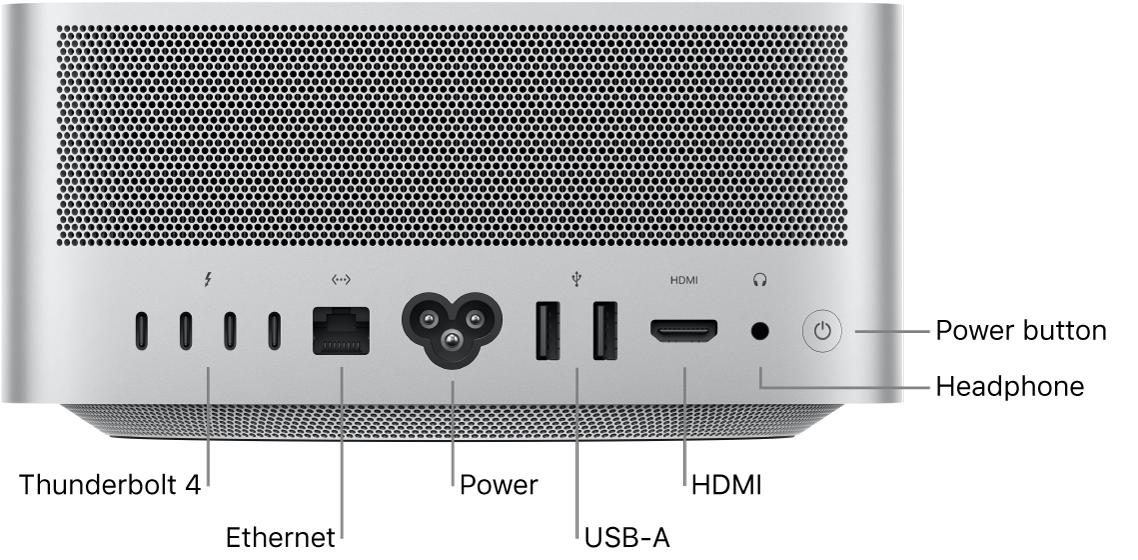

  • Four Thunderbolt 4 ports with support for:Thunderbolt 4 (up to 40Gb/s)DisplayPortUSB 4 (up to 40Gb/s)USB 3.1 Gen 2 (up to 10Gb/s)Two USB-A ports (up to 5Gb/s)HDMI port10Gb Ethernet3.5 mm headphone jack
  • Thunderbolt 4 (up to 40Gb/s)
  • DisplayPort
  • USB 4 (up to 40Gb/s)
  • USB 3.1 Gen 2 (up to 10Gb/s)
  • Two USB-A ports (up to 5Gb/s)
  • HDMI port
  • 10Gb Ethernet
  • 3.5 mm headphone jack

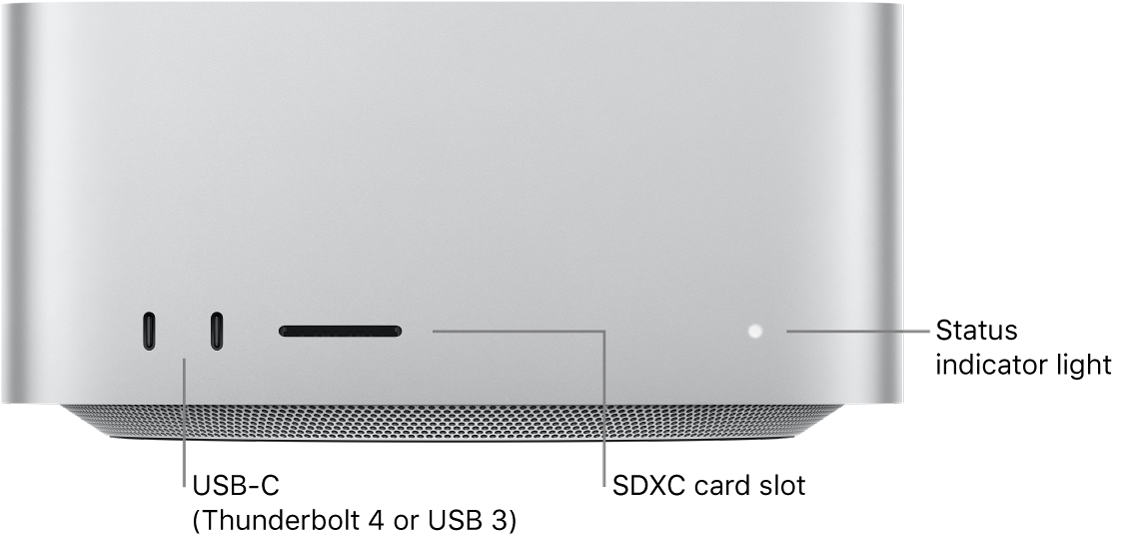

  • On front (M1 Max):Two USB-C ports (up to 10Gb/s)SDXC card slot (UHS-II)
  • Two USB-C ports (up to 10Gb/s)
  • SDXC card slot (UHS-II)
  • On front (M1 Ultra):Two Thunderbolt 4 ports (up to 40Gb/s)SDXC card slot (UHS-II)
  • Two Thunderbolt 4 ports (up to 40Gb/s)

iElectrical and Operating Requirements

  • Line voltage: 100–240V AC
  • Frequency: 50Hz to 60Hz, single phase
  • Maximum continuous power: 370W
  • Operating temperature: 50° to 95° F (10° to 35° C)
  • Storage temperature: –40° to 116° F (–40° to 47° C)
  • Relative humidity: 5% to 90% noncondensing
  • Operating altitude: tested up to 16,400 feet (5000 meters)

iMac Studio and the Environment

  • Mac Studio is designed with the following features to reduce its environmental impact:4
  • See the Mac Studio Product Environmental Report
  • Made with better materials
  • 100% recycled rare earth elements in all magnets, representing 98% of the rare earth elements in the device
  • 80% recycled aluminum in the enclosure
  • 100% recycled tin in the solder of the main logic board
  • 25% or more recycled plastic in multiple components
  • Energy efficient
  • ENERGY STAR® certified5
  • Smarter chemistry6
  • Mercury-, BFR-, PVC-, and beryllium‑free
  • Green manufacturing
  • Apple’s Zero Waste Program helps suppliers eliminate waste sent to landfill
  • All final assembly supplier sites are transitioning to 100% renewable energy for Apple production
  • Responsible packaging
  • 100% of virgin wood fiber comes from responsibly managed forests
  • 90% or more fiber-based packaging
  • Apple and the Environment
  • We’re committed to making our products without taking from the earth, and to become carbon neutral across our entire business, including products, by 2030.
  • See Apple’s commitment

iMemory

  • Apple M1 Max chip
  • 32GB unified memoryConfigurable to 64GB
  • Configurable to 64GB
  • Apple M1 Ultra chip
  • 64GB unified memoryConfigurable to 128GB
  • Configurable to 128GB

iStorage1

  • Apple M1 Max chip
  • 512GB SSDConfigurable to 1TB, 2TB, 4TB, or 8TB
  • Configurable to 1TB, 2TB, 4TB, or 8TB
  • Apple M1 Ultra chip
  • 1TB SSDConfigurable to 2TB, 4TB, or 8TB
  • Configurable to 2TB, 4TB, or 8TB

iVideo Support

  • Simultaneously supports up to five displays:
  • Support for up to four Pro Display XDRs (6K resolution at 60Hz and over a billion colors) over USB-C and one 4K display (4K resolution at 60Hz and over a billion colors) over HDMI
  • Thunderbolt 4 digital video output supports
  • Native DisplayPort output over USB‑C
  • Thunderbolt 2, DVI, and VGA output supported using adapters (sold separately)
  • HDMI display video output
  • Support for one display with up to 4K resolution at 60Hz
  • DVI output using HDMI to DVI Adapter (sold separately)

Mac Studio (2022) FAQ

What year was Apple Mac Studio (2022) released?

Apple Mac Studio (2022) was released in 2022.

What is the display size of Apple Mac Studio (2022)?

Apple Mac Studio (2022) has Simultaneously supports up to five displays:; Support for up to four Pro Display XDRs (6K….

What chip does Apple Mac Studio (2022) use?

Apple Mac Studio (2022) uses Apple M1 Max chip; 10-core CPU with 8 performance cores and 2 efficiency cores; 24-core G….

What storage capacities are available for Apple Mac Studio (2022)?

Available storage capacities include 512GB, 1TB, 2TB, 4TB, 8TB.
