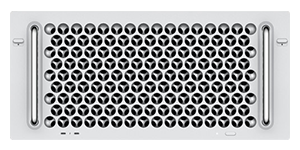

Mac Pro (Rack, 2023)
Specs / Apple / Mac Pro (Rack, 2023)

Mac Pro (Rack, 2023) Specifications

Complete Apple Mac Pro (Rack, 2023) technical specifications · Released 2023 · model numbers, colors, storage, dimensions and hardware details.

Chip: Apple M2 Ultra chip; 24-core CPU with 16 performance cores and 8 efficiency cores; 60-cor… Display: Simultaneous support for up to eight displays:; Eight displays with up to 4K resolution a…
Check IMEI / Serial All specs
Display
Simultaneous support for up to eight displays:; Eight displays with up to 4K resolution at 60Hz; Six displays…
Chip
Apple M2 Ultra chip; 24-core CPU with 16 performance cores and 8 efficiency cores; 60-core GPU; 32-core Neural Engine; …
Storage / Colors
1TB, 2TB, 4TB, 8TB · Silver
Weight / OS
17210 g · macOS

Apple Mac Pro (Rack, 2023) technical specifications

This page contains complete technical specifications for Apple Mac Pro (Rack, 2023), including display, chip, storage, colors, model numbers, dimensions, weight, operating system, connectivity, battery information and other hardware details.

Use this information to compare Apple devices, identify the exact model, check compatibility and verify key hardware features before service, repair, resale or purchase.

iFinish

  • Silver

↔Size and Weight

  • Height: 8.67 inches (22.02 cm) 5U
  • Width: 18.98 inches (48.2 cm)
  • Enclosure depth (from handle): 21.24 inches (53.95 cm)
  • Handle depth: 1.81 inches (4.60 cm)
  • Enclosure depth (from fascia): 19.43 inches (49.35 cm)
  • Minimum rack depth: 24.0 inches (60.96 cm)
  • Maximum rack depth: 42.0 inches (106.68 cm)
  • Weight: 37.9 pounds (17.21 kg)3

⚙Chip

  • Apple M2 Ultra chip
  • 24-core CPU with 16 performance cores and 8 efficiency cores
  • 60-core GPU
  • 32-core Neural Engine
  • 800GB/s memory bandwidth
  • Media engine
  • Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
  • Two video decode engines
  • Four video encode engines
  • Four ProRes encode and decode engines
  • Configurable to:
  • M2 Ultra with 24-core CPU, 76-core GPU, and 32-core Neural Engine

iOperating System

  • macOS
  • macOS is the most advanced desktop operating system in the world. It helps you stay productive and creative with help from Apple Intelligence,5 iPhone Mirroring,6 window tiling, major updates to Safari, and more.
  • Mac User Guide

iAccessibility

  • Accessibility features help people with disabilities get the most out of their new Mac Pro. With built-in support for vision, hearing, mobility, and learning, you can create and do amazing things.
  • Learn more about accessibility
  • Features include:
  • Voice Control
  • VoiceOver
  • Zoom
  • Increase Contrast
  • Reduce Motion
  • Siri and Dictation
  • Switch Control
  • Live Captions

iIn the Box

  • Mac Pro
  • Rack mount rails (shipped in separate box)
  • Magic Keyboard with Touch ID and Numeric Keypad
  • Magic Mouse
  • Power cord (2 m)
  • USB‑C Charge Cable (1 m)

iAcoustic Performance

  • Declared noise emission values in accordance with ECMA-109
  • Sound Power LevelL W A,m (B)Idle2.4 (K V = 0.3)Wireless web2.4 (K V = 0.3)
  • L W A,m is the mean A-weighted sound power level, rounded to the nearest 0.1 B.
  • Lp A,m is the mean A-weighted sound pressure level measured at operator position (rounded to the nearest 1 dB).
  • 1 B (bel) = 10 dB (decibel).
  • K v is the statistical adder for computing upper-limit of A-weighted sound power level.
  • The quantity, L W A,c (formerly called L W Ad) may be computed from the sum of L W A,m and K v .
  • The wireless web test browses 6 tabs with a mix of content including media.
  • Configuration tested: Mac Pro with M2 Ultra chip, 24-core CPU / 60-core GPU, 64GB unified memory, 1TB storage, rack enclosure.

iAudio

  • Built-in speaker
  • 3.5 mm headphone jack with advanced support for high-impedance headphones
  • HDMI port supports multichannel audio output

iBuilt-in Apps7

  • App Store
  • Books
  • Calendar
  • Contacts
  • FaceTime
  • Find My
  • Freeform
  • GarageBand
  • Home
  • iMovie
  • Keynote
  • Mail
  • Maps
  • Messages
  • Music
  • News
  • Notes
  • Numbers
  • Pages
  • Passwords
  • Photo Booth
  • Photos
  • Podcasts
  • Preview
  • QuickTime Player
  • Reminders
  • Safari
  • Shortcuts
  • Siri
  • Stocks
  • Time Machine
  • Tips
  • TV
  • Voice Memos
  • Weather

iCommunications

  • Wi-Fi
  • Wi-Fi 6E (802.11ax)2
  • Bluetooth
  • Bluetooth 5.3
  • Two 10Gb Ethernet ports
  • 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)

iConfigure to Order

  • Configure your Mac Pro with these options at apple.com:
  • M2 Ultra with 24-core CPU, 76-core GPU, and 32-core Neural Engine
  • 128GB unified memory
  • 192GB unified memory
  • 2TB, 4TB, or 8TB SSD
  • Wheels (tower)

⌁Connections

  • Eight Thunderbolt 4 (USB-C) ports
  • Six ports on the back of the enclosure and two ports on the top of the tower enclosure or two ports on the front of the rack enclosure
  • Support for:
  • Thunderbolt 4 (up to 40Gb/s)
  • DisplayPort
  • USB 4 (up to 40Gb/s)
  • USB 3.1 Gen 2 (up to 10Gb/s)
  • Internal connections
  • One USB-A port (up to 5Gb/s)
  • Two Serial ATA ports (up to 6Gb/s)
  • Additional connections
  • Two USB-A ports (up to 5Gb/s)
  • Two HDMI ports
  • Two 10Gb Ethernet ports
  • 3.5 mm headphone jack

▣Display Support

  • Simultaneous support for up to eight displays:
  • Eight displays with up to 4K resolution at 60Hz
  • Six displays with up to 6K resolution at 60Hz
  • Three displays with up to 8K resolution at 60Hz
  • Thunderbolt 4 digital video output
  • Support for native DisplayPort output over USB-C
  • HDMI display video output (per port)
  • Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz
  • Support for variable refresh rate (VRR), HDR, and multichannel audio

iElectrical and Operating Requirements

  • Line voltage: 100–125V AC at 12A; 220–240V AC at 6A
  • Frequency: 50Hz to 60Hz, single phase
  • Maximum continuous power: 1280W at 108–125V or 220–240V; 1180W at 100–107V
  • Operating temperature: 50° to 95° F (10° to 35° C)
  • Storage temperature: –40° to 116° F (–40° to 47° C)
  • Relative humidity: 5% to 95% noncondensing
  • Maximum altitude: tested up to 16,400 feet (5000 meters)
  • Typical acoustical performance: Sound pressure level (operator position): 5 dBA at idle4

iEnclosure

  • Mac Pro rack enclosure with rack mount rails

iExpansion

  • Six full-length PCI Express gen 4 slots
  • Two x16 slots
  • Four x8 slots
  • One half-length x4 PCI Express gen 3 slot with Apple I/O card installed
  • 300W auxiliary power available:
  • Two 6-pin connectors delivering 75W of power each
  • One 8-pin connector delivering 150W of power

iInput Devices

  • Magic Keyboard with Touch ID and Numeric Keypad
  • Magic Mouse
  • Optional Magic Trackpad

iMac Pro and the Environment

  • Mac Pro is designed with the following features to reduce its environmental impact:8
  • See the Mac Pro Product Environmental Report (PDF)
  • Made with better materials
  • 30% recycled content in the entire product,9 including:
  • 70% recycled aluminum in the enclosure
  • 100% recycled rare earth elements in the speaker magnets
  • 100% recycled gold in the plating of multiple printed circuit boards
  • 100% recycled tin in the solder of multiple printed circuit boards
  • 35% or more recycled plastic in multiple components
  • Energy efficient
  • ENERGY STAR® certified10
  • Smarter chemistry11
  • Mercury-, BFR-, PVC-, and beryllium-free
  • Green manufacturing
  • Over 20% of manufacturing electricity sourced from supplier clean energy projects12
  • No established final assembly supplier sites generate any waste sent to landfill13
  • Responsible packaging
  • 100% of virgin wood fiber comes from responsibly managed forests14
  • 95% fiber-based packaging15
  • Progress toward our 2030 goal
  • Reduced emissions for Mac Pro by 34% against our baseline16
  • Apple and the Environment
  • Today, Apple is carbon neutral for global corporate operations, and we are focused on our Apple 2030 goal to make every product carbon neutral.
  • See Apple’s commitment

iMemory

  • 64GB unified memory
  • Configurable to:
  • 128GB or 192GB

iStorage1

  • 1TB SSD
  • Configurable to:
  • 2TB, 4TB, or 8TB

Mac Pro (Rack, 2023) FAQ

What year was Apple Mac Pro (Rack, 2023) released?

Apple Mac Pro (Rack, 2023) was released in 2023.

What is the display size of Apple Mac Pro (Rack, 2023)?

Apple Mac Pro (Rack, 2023) has Simultaneous support for up to eight displays:; Eight displays with up to 4K resolution a….

What chip does Apple Mac Pro (Rack, 2023) use?

Apple Mac Pro (Rack, 2023) uses Apple M2 Ultra chip; 24-core CPU with 16 performance cores and 8 efficiency cores; 60-cor….

What storage capacities are available for Apple Mac Pro (Rack, 2023)?

Available storage capacities include 1TB, 2TB, 4TB, 8TB.
