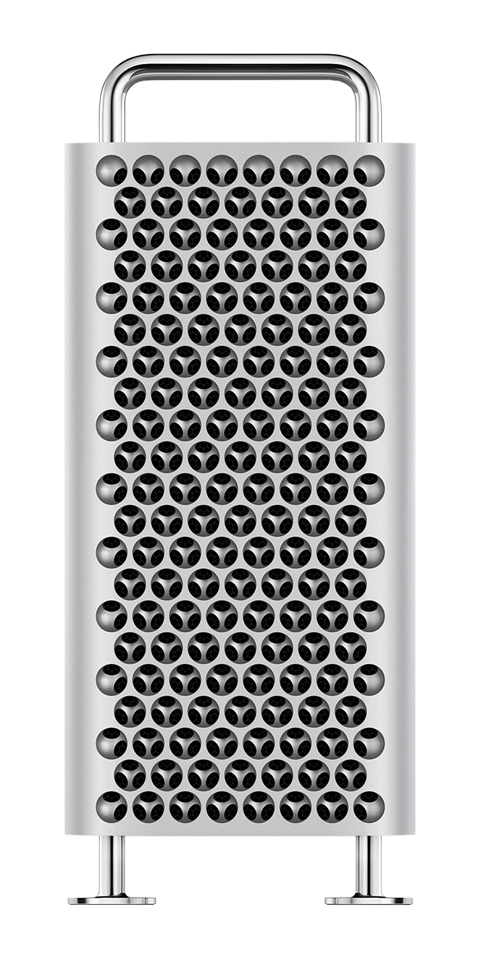

Mac Pro (2019)
Specs / Apple / Mac Pro (2019)

Mac Pro (2019) Specifications

Complete Apple Mac Pro (2019) technical specifications · model numbers, colors, storage, dimensions and hardware details.

Chip: Configure from an 8‑core to 28‑core Intel Xeon W processor; 8-Core3.5GHz Intel Xeon W8 co… Display: Configure two MPX Modules with up to four GPUs; AMD Radeon Pro 580X36 compute units, 2304…
Check IMEI / Serial All specs
Display
Configure two MPX Modules with up to four GPUs; AMD Radeon Pro 580X36 compute units, 2304 stream processors8G…
Chip
Configure from an 8‑core to 28‑core Intel Xeon W processor; 8-Core3.5GHz Intel Xeon W8 cores, 16 threadsTurbo Boost up …
Storage / Colors
8TB, 256GB, 512GB, 1TB, 2TB
Weight / OS
18000 g · macOS

Apple Mac Pro (2019) technical specifications

This page contains complete technical specifications for Apple Mac Pro (2019), including display, chip, storage, colors, model numbers, dimensions, weight, operating system, connectivity, battery information and other hardware details.

Use this information to compare Apple devices, identify the exact model, check compatibility and verify key hardware features before service, repair, resale or purchase.

iOperating System

  • macOS
  • macOS is the most advanced desktop operating system in the world. macOS Ventura makes the things you do most on Mac even better, so you can work smarter, play harder, and go further.
  • Learn more about latest operating system

iAccessibility

  • Accessibility features help people with disabilities get the most out of their new Mac Pro. With built-in support for vision, hearing, mobility, and learning, you can create and do amazing things.
  • Learn more about accessibility
  • Features include:
  • Voice Control
  • VoiceOver
  • Zoom
  • Increase Contrast
  • Reduce Motion
  • Siri and Dictation
  • Switch Control
  • Live Captions

iIn the Box

  • Mac Pro
  • Magic Keyboard with Numeric Keypad
  • Magic Mouse
  • USB-C to Lightning Cable (1 m)
  • Power cord (2 m)

iAcoustic Performance

  • Declared noise emission values in accordance with ECMA-109
  • Sound Power LevelL W A,m (B)Sound Pressure LevelOperator PositionL p A,m (dB)Idle2.7 (K V = 0.3)11Wireless web2.7 (K V = 0.3)11
  • L W A,m is the mean A-weighted sound power level, rounded to the nearest 0.1 B.
  • L p A,m is the mean A-weighted sound pressure level measured at operator position (rounded to the nearest 1 dB).
  • 1 B (bel) = 10 dB (decibel)
  • K v is the statistical adder for computing upper-limit of A-weighted sound power level.
  • The quantity, L W A,c (formerly called L W Ad) may be computed from the sum of L W A,m and K v .
  • The Wireless web test browses 25 popular websites.
  • Configuration tested: 3.5GHz 8-core Intel Xeon W processor, 32GB (4X8GB) memory, Radeon Pro 580X MPX Module, 256GB SSD.

⌁Additional Connections

  • Two Thunderbolt 3 ports on the top of the tower enclosure
  • Support for Thunderbolt 3 (up to 40Gb/s)
  • Support for USB-C (up to 10Gb/s)
  • Support for DisplayPort

iApple Afterburner

  • ProRes and ProRes RAW accelerator card
  • PCI Express x16 card
  • Accelerates ProRes and ProRes RAW codecs in Final Cut Pro, QuickTime Player X, and supported third-party apps
  • Supports system playback of up to 6 streams of 8K ProRes RAW or up to 23 streams of 4K ProRes RAW1

iAudio

  • Built-in speaker
  • 3.5 mm headphone jack with headset support

iBuilt-in Apps4

  • Photos
  • iMovie
  • GarageBand
  • Pages
  • Numbers
  • Keynote
  • Siri
  • Safari
  • Mail
  • FaceTime
  • Messages
  • Maps
  • News
  • Stocks
  • Home
  • Voice Memos
  • Notes
  • Calendar
  • Contacts
  • Reminders
  • Photo Booth
  • Preview
  • Books
  • App Store
  • Time Machine
  • TV
  • Music
  • Podcasts
  • Find My
  • Freeform
  • QuickTime Player
  • Shortcuts

iDimensions

  • Height: 20.8 inches (52.9 cm)
  • Width: 17.7 inches (45.0 cm)
  • Depth: 8.58 inches (21.8 cm)
  • Height with optional wheels: 21.9 inches (55.7 cm)

iElectrical and Operating Requirements

  • Line voltage: 100–125V AC at 12A; 220–240V AC at 6A
  • Frequency: 50Hz to 60Hz, single phase
  • Operating temperature: 50° to 95° F (10° to 35° C)
  • Storage temperature: –40° to 116° F (–40° to 47° C)
  • Relative humidity: 5% to 95% noncondensing
  • Maximum altitude: tested up to 16,400 feet (5000 meters)

iEnclosure

  • Mac Pro tower enclosure with feet; configurable to tower with wheels

iExpansion Slots

  • Eight PCI Express expansion slots
  • Two MPX Modules or up to four PCI Express card slotsEach MPX bay provides:x16 gen 3 bandwidth for graphicsx8 gen 3 bandwidth for ThunderboltDisplayPort video routingUp to 500W power for an MPX ModuleAlternatively, each MPX bay can support:One full-length, double-wide x16 gen 3 slot and one full-length, double-wide x8 gen 3 slot (MPX bay 1)Or two full-length, double-wide x16 gen 3 slots (MPX bay 2)Up to 300W auxiliary power via two 8-pin connectors
  • Each MPX bay provides:x16 gen 3 bandwidth for graphicsx8 gen 3 bandwidth for ThunderboltDisplayPort video routingUp to 500W power for an MPX ModuleAlternatively, each MPX bay can support:One full-length, double-wide x16 gen 3 slot and one full-length, double-wide x8 gen 3 slot (MPX bay 1)Or two full-length, double-wide x16 gen 3 slots (MPX bay 2)Up to 300W auxiliary power via two 8-pin connectors
  • x16 gen 3 bandwidth for graphics
  • x8 gen 3 bandwidth for Thunderbolt
  • DisplayPort video routing
  • Up to 500W power for an MPX Module
  • One full-length, double-wide x16 gen 3 slot and one full-length, double-wide x8 gen 3 slot (MPX bay 1)
  • Or two full-length, double-wide x16 gen 3 slots (MPX bay 2)
  • Up to 300W auxiliary power via two 8-pin connectors
  • Three full-length PCI Express gen 3 slotsOne x16 slot; two x8 slots75W auxiliary power available
  • One x16 slot; two x8 slots
  • 75W auxiliary power available
  • One half-length x4 PCI Express gen 3 slot with Apple I/O card installed

iGraphics

  • Configure two MPX Modules with up to four GPUs
  • AMD Radeon Pro 580X36 compute units, 2304 stream processors8GB of GDDR5 memoryUp to 5.6 teraflops single precisionTwo HDMI 2.0 ports on cardFour DisplayPort connections routed to system to support internal Thunderbolt 3 portsSupport for up to six 4K displays, two 5K displays, or two Pro Display XDRsHalf-height MPX Module fits in an MPX bay and enables PCIe slot 2 for additional expansion
  • 36 compute units, 2304 stream processors
  • 8GB of GDDR5 memory
  • Up to 5.6 teraflops single precision
  • Two HDMI 2.0 ports on card
  • Four DisplayPort connections routed to system to support internal Thunderbolt 3 ports
  • Support for up to six 4K displays, two 5K displays, or two Pro Display XDRs
  • Half-height MPX Module fits in an MPX bay and enables PCIe slot 2 for additional expansion
  • AMD Radeon Pro W5500X24 compute units, 1536 stream processors8GB of GDDR6 memory with 224GB/s memory bandwidthUp to 5.6 teraflops single precision or 11.2 teraflops half precisionTwo HDMI ports on card with support for 4K60Two DisplayPort connections routed to system to support internal Thunderbolt 3 portsSupport for up to four 4K displays, one 5K display, or one Pro Display XDRHalf-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth
  • 24 compute units, 1536 stream processors
  • 8GB of GDDR6 memory with 224GB/s memory bandwidth
  • Up to 5.6 teraflops single precision or 11.2 teraflops half precision
  • Two HDMI ports on card with support for 4K60
  • Two DisplayPort connections routed to system to support internal Thunderbolt 3 ports
  • Support for up to four 4K displays, one 5K display, or one Pro Display XDR
  • Half-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth
  • AMD Radeon Pro W5700X40 compute units, 2560 stream processors16GB of GDDR6 memory with 448GB/s memory bandwidthUp to 9.4 teraflops single precision or 18.9 teraflops half precisionFour Thunderbolt 3 ports and one HDMI port on card with support for 4K60Two DisplayPort connections routed to system to support internal Thunderbolt 3 portsSupport for Display Stream Compression (DSC)Support for up to six 4K displays, three 5K displays, or three Pro Display XDRsFull-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth
  • 40 compute units, 2560 stream processors
  • 16GB of GDDR6 memory with 448GB/s memory bandwidth
  • Up to 9.4 teraflops single precision or 18.9 teraflops half precision
  • Four Thunderbolt 3 ports and one HDMI port on card with support for 4K60
  • Support for Display Stream Compression (DSC)
  • Support for up to six 4K displays, three 5K displays, or three Pro Display XDRs
  • Full-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth
  • AMD Radeon Pro Vega II64 compute units, 4096 stream processors32GB of HBM2 memory with 1TB/s memory bandwidthUp to 14.1 teraflops single precision or 28.3 teraflops half precisionInfinity Fabric Link connection enables two Vega II GPUs to connect at up to 84GB/sFour Thunderbolt 3 ports and one HDMI 2.0 port on cardTwo DisplayPort connections routed to system to support internal Thunderbolt 3 portsSupport for up to six 4K displays, three 5K displays, or two Pro Display XDRsFull-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth
  • 64 compute units, 4096 stream processors
  • 32GB of HBM2 memory with 1TB/s memory bandwidth
  • Up to 14.1 teraflops single precision or 28.3 teraflops half precision
  • Infinity Fabric Link connection enables two Vega II GPUs to connect at up to 84GB/s
  • Four Thunderbolt 3 ports and one HDMI 2.0 port on card
  • Support for up to six 4K displays, three 5K displays, or two Pro Display XDRs
  • AMD Radeon Pro Vega II DuoTwo Vega II GPUs, each with 64 compute units and 4096 stream processors64GB of HBM2 memory (32GB per GPU), each with 1TB/s memory bandwidthUp to 28.3 teraflops single precision or 56.6 teraflops half precisionOnboard Infinity Fabric Link connection connects the two Vega II GPUs at up to 84GB/sFour Thunderbolt 3 ports and one HDMI 2.0 port on cardFour DisplayPort connections routed to system to support internal Thunderbolt 3 portsSupport for up to eight 4K displays, four 5K displays, or four Pro Display XDRsFull-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth
  • Two Vega II GPUs, each with 64 compute units and 4096 stream processors
  • 64GB of HBM2 memory (32GB per GPU), each with 1TB/s memory bandwidth
  • Up to 28.3 teraflops single precision or 56.6 teraflops half precision
  • Onboard Infinity Fabric Link connection connects the two Vega II GPUs at up to 84GB/s
  • Support for up to eight 4K displays, four 5K displays, or four Pro Display XDRs
  • AMD Radeon Pro W6800X60 compute units, 3840 stream processors32GB of GDDR6 memory with 512GB/s memory bandwidthUp to 16.0 teraflops single precision or 32.0 teraflops half precisionInfinity Fabric Link connection enables two W6800X GPUs to connect at up to 84GB/s in each directionFour Thunderbolt 3 ports and one HDMI port on card with support for 4K60Two DisplayPort connections routed to system to support internal Thunderbolt 3 portsSupport for up to six 4K displays, three 5K displays, or three Pro Display XDRsFull-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth
  • 60 compute units, 3840 stream processors
  • 32GB of GDDR6 memory with 512GB/s memory bandwidth
  • Up to 16.0 teraflops single precision or 32.0 teraflops half precision
  • Infinity Fabric Link connection enables two W6800X GPUs to connect at up to 84GB/s in each direction
  • AMD Radeon Pro W6900X80 compute units, 5120 stream processors32GB of GDDR6 memory with 512GB/s memory bandwidthUp to 22.2 teraflops single precision or 44.4 teraflops half precisionInfinity Fabric Link connection enables two W6900X GPUs to connect at up to 84GB/s in each directionFour Thunderbolt 3 ports and one HDMI port on card with support for 4K60Two DisplayPort connections routed to system to support internal Thunderbolt 3 portsSupport for up to six 4K displays, three 5K displays, or three Pro Display XDRsFull-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth
  • 80 compute units, 5120 stream processors
  • Up to 22.2 teraflops single precision or 44.4 teraflops half precision
  • Infinity Fabric Link connection enables two W6900X GPUs to connect at up to 84GB/s in each direction
  • AMD Radeon Pro W6800X DuoTwo W6800X GPUs, each with 60 compute units and 3840 stream processors64GB of GDDR6 memory (32GB per GPU), each with 512GB/s memory bandwidthUp to 30.2 teraflops single precision or 60.4 teraflops half precisionOnboard Infinity Fabric Link connection connects two W6800X GPUs at up to 84GB/s in each direction; external Infinity Fabric Link connection enables two W6800X Duo modules to connect four W6800X GPUsFour Thunderbolt 3 ports and one HDMI port on card with support for 4K60Four DisplayPort connections routed to system to support internal Thunderbolt 3 portsSupport for up to eight 4K displays, four 5K displays, or six Pro Display XDRsFull-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth
  • Two W6800X GPUs, each with 60 compute units and 3840 stream processors
  • 64GB of GDDR6 memory (32GB per GPU), each with 512GB/s memory bandwidth
  • Up to 30.2 teraflops single precision or 60.4 teraflops half precision
  • Onboard Infinity Fabric Link connection connects two W6800X GPUs at up to 84GB/s in each direction; external Infinity Fabric Link connection enables two W6800X Duo modules to connect four W6800X GPUs
  • Support for up to eight 4K displays, four 5K displays, or six Pro Display XDRs
  • AMD Radeon Pro W6600X32 compute units, 2048 stream processors8GB of GDDR6 memory with 256GB/s memory bandwidthUp to 9.8 teraflops single precision or 19.6 teraflops half precisionTwo HDMI ports on card with support for 4K60Up to four DisplayPort connections routed to system to support internal Thunderbolt 3 portsSupport for up to four 4K displays, one 5K display, or two Pro Display XDRsHalf-height MPX Module fills an MPX bay and uses extra power and PCIe bandwidth
  • 32 compute units, 2048 stream processors
  • 8GB of GDDR6 memory with 256GB/s memory bandwidth
  • Up to 9.8 teraflops single precision or 19.6 teraflops half precision
  • Up to four DisplayPort connections routed to system to support internal Thunderbolt 3 ports
  • Support for up to four 4K displays, one 5K display, or two Pro Display XDRs

iInput Devices

  • Magic Keyboard with Numeric Keypad (silver and black)
  • Magic Mouse (silver and black)
  • Optional Magic Trackpad (silver and black)

iInput/Output

  • I/O card installed in the half-length x4 PCI Express slot with:
  • Two USB 3 portsSupport for USB-A (up to 5Gb/s)
  • Support for USB-A (up to 5Gb/s)
  • Two Thunderbolt 3 portsSupport for Thunderbolt 3 (up to 40Gb/s)Support for USB-C (up to 10Gb/s)Support for DisplayPort
  • Support for Thunderbolt 3 (up to 40Gb/s)
  • Support for USB-C (up to 10Gb/s)
  • Support for DisplayPort
  • Two 10Gb Ethernet ports:Support for 10Gb Ethernet performance over copper cablingSupport for Nbase-T industry standard: 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet link speeds using RJ-45 connectors
  • Support for 10Gb Ethernet performance over copper cabling
  • Support for Nbase-T industry standard: 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet link speeds using RJ-45 connectors

iKits and Accessories

  • Displays
  • Pro Display XDR
  • Studio Display
  • Graphics
  • Radeon Pro W5500X MPX Module Kit
  • Radeon Pro W6600X MPX Module Kit
  • Radeon Pro W5700X MPX Module Kit
  • Radeon Pro Vega II MPX Module Kit
  • Radeon Pro Vega II Duo MPX Module Kit
  • Apple Afterburner Kit
  • Radeon Pro W6800X MPX Module Kit
  • Radeon Pro W6900X MPX Module Kit
  • Radeon Pro W6800X Duo MPX Module Kit
  • Memory
  • Apple 16GB DDR4 ECC Memory Kit
  • Apple 32GB DDR4 ECC Memory Kit
  • Apple 64GB DDR4 ECC Memory Kit
  • Apple 128GB DDR4 ECC Memory Kit
  • Apple 256GB DDR4 ECC Memory Kit
  • Storage
  • Apple 1TB SSD Kit
  • Apple 2TB SSD Kit
  • Apple 4TB SSD Kit
  • Apple 8TB SSD Kit
  • Promise Pegasus R4i 32TB RAID MPX Module Kit
  • Promise Pegasus J2i
  • Mac Software
  • Final Cut Pro
  • Logic Pro
  • Other Accessories
  • AppleCare+ for Mac
  • Feet Kit
  • Wheels Kit
  • Belkin Lock Adapter for Mac Pro
  • Belkin AUX Power Cable Kit for Mac Pro
  • Logitech Pro Magnetic Webcam

iMac Pro and the Environment

  • Apple takes a complete product life cycle approach to determining our environmental impact. Learn more about Mac Pro and the Environment
  • Mac Pro is designed with the following features to reduce its environmental impact:
  • Made with better materials
  • Enclosure made with low-carbon aluminum
  • Responsible packaging
  • Recyclable, majority-fiber packaging
  • 100% of primary wood fiber comes from responsibly managed forests
  • Energy efficient
  • Meets ENERGY STAR requirements5
  • Smarter chemistry
  • BFR-, PVC-, and beryllium-free

iMemory

  • Configure up to 1.5TB of DDR4 ECC memory in 12 user-accessible DIMM slots
  • 32GBFour 8GB DIMMs
  • Four 8GB DIMMs
  • 48GBSix 8GB DIMMs
  • Six 8GB DIMMs
  • 96GBSix 16GB DIMMs
  • Six 16GB DIMMs
  • 192GBSix 32GB DIMMs
  • Six 32GB DIMMs
  • 384GBSix 64GB DIMMs
  • Six 64GB DIMMs
  • 768GBSix 128GB DIMMs or 12 64GB DIMMs
  • Six 128GB DIMMs or 12 64GB DIMMs
  • 1.5TB12 128GB DIMMsRequires 24-core or 28-core processor.
  • 12 128GB DIMMs
  • Requires 24-core or 28-core processor.
  • 8-core processor operates memory at 2666MHz.
  • 12-core to 28-core processors operate memory at 2933MHz.

⚡Power Supply

  • 1.4 kilowatts
  • Maximum continuous power:1280W at 108–125V or 220–240V1180W at 100–107V
  • 1280W at 108–125V or 220–240V
  • 1180W at 100–107V

⚙Processor

  • Configure from an 8‑core to 28‑core Intel Xeon W processor
  • 8-Core3.5GHz Intel Xeon W8 cores, 16 threadsTurbo Boost up to 4.0GHz24.5MB cacheSupports 2666MHz memory
  • 3.5GHz Intel Xeon W
  • 8 cores, 16 threads
  • Turbo Boost up to 4.0GHz
  • 24.5MB cache
  • Supports 2666MHz memory
  • 12-Core3.3GHz Intel Xeon W12 cores, 24 threadsTurbo Boost up to 4.4GHz31.25MB cacheSupports 2933MHz memory
  • 3.3GHz Intel Xeon W
  • 12 cores, 24 threads
  • Turbo Boost up to 4.4GHz
  • 31.25MB cache
  • Supports 2933MHz memory
  • 16-Core3.2GHz Intel Xeon W16 cores, 32 threadsTurbo Boost up to 4.4GHz38MB cacheSupports 2933MHz memory
  • 3.2GHz Intel Xeon W
  • 16 cores, 32 threads
  • 38MB cache
  • 24-Core2.7GHz Intel Xeon W24 cores, 48 threadsTurbo Boost up to 4.4GHz57MB cacheSupports 2933MHz memory
  • 2.7GHz Intel Xeon W
  • 24 cores, 48 threads
  • 57MB cache
  • 28-Core2.5GHz Intel Xeon W28 cores, 56 threadsTurbo Boost up to 4.4GHz66.5MB cacheSupports 2933MHz memory
  • 2.5GHz Intel Xeon W
  • 28 cores, 56 threads
  • 66.5MB cache

iStorage

  • Configure up to 8TB of SSD storage2
  • 256GB SSDOne 256GB module
  • One 256GB module
  • 512GB SSDOne 512GB module
  • One 512GB module
  • 1TB SSDTwo 512GB modules
  • Two 512GB modules
  • 2TB SSDTwo 1TB modules
  • Two 1TB modules
  • 4TB SSDTwo 2TB modules
  • Two 2TB modules
  • 8TB SSDTwo 4TB modules
  • Two 4TB modules
  • Up to 3.4GB/s sequential read and 3.4GB/s sequential write performance.
  • Storage encrypted by the Apple T2 Security Chip.

↔Weight3

  • 39.7 pounds (18.0 kg)

⌁Wireless

  • Wi-Fi802.11ac Wi-Fi wireless networkingIEEE 802.11a/b/g/n compatible
  • 802.11ac Wi-Fi wireless networking
  • IEEE 802.11a/b/g/n compatible
  • BluetoothBluetooth 5.0 wireless technology
  • Bluetooth 5.0 wireless technology

Mac Pro (2019) FAQ

What is the display size of Apple Mac Pro (2019)?

Apple Mac Pro (2019) has Configure two MPX Modules with up to four GPUs; AMD Radeon Pro 580X36 compute units, 2304….

What chip does Apple Mac Pro (2019) use?

Apple Mac Pro (2019) uses Configure from an 8‑core to 28‑core Intel Xeon W processor; 8-Core3.5GHz Intel Xeon W8 co….

What storage capacities are available for Apple Mac Pro (2019)?

Available storage capacities include 8TB, 256GB, 512GB, 1TB, 2TB, 4TB, 4GB.
