Apple Mac mini (Late 2014)
Mac mini

Mac mini (Late 2014) Technical specifications

It has the 1.4GHz1.4GHz dual-core Intel Core i5 (Turbo Boost up to 2.7… chip. Storage options: 1TB, 500GB, 256GB, 2TB, 512GB. Colors: both at millions of colors, Native Mini DisplayPort output. Weight: 1.19 kg.

  • Display1.4″
  • Chip1.4GHz1.4GHz dual-cor…
  • Storage1TB–512GB
  • Weight1.19 kg
  • Memory1.4GHz4GB of 1600MHz …
  • both at millions of colors
  • Native Mini DisplayPort output
Check IMEI / Serial All specs

Updated:

Mac mini (Late 2014): key specifications

Display1.4″
Chip1.4GHz1.4GHz dual-core Intel Core i5 (Turbo Boost up to 2.7…
Memory1.4GHz4GB of 1600MHz LPDDR3 memoryConfigurable to 8GB or 16GB.
Storage1TB / 500GB / 256GB / 2TB / 512GB
ConnectorTwo Thunderbolt 2 ports (up to 20 Gbps)
Dimensions (H × W × D)3.6 × 19.7 × 19.7 cm
Weight1.19 kg
Operating SystemmacOS

Models, storage and colors

Storage

  • 1TB
  • 500GB
  • 256GB
  • 2TB
  • 512GB

Colors

  • both at millions of colors
  • Native Mini DisplayPort output

Complete specifications

Memory

  • 1.4GHz4GB of 1600MHz LPDDR3 memoryConfigurable to 8GB or 16GB.
  • 4GB of 1600MHz LPDDR3 memory
  • Configurable to 8GB or 16GB.
  • 2.6GHz8GB of 1600MHz LPDDR3 memoryConfigurable to 16GB.
  • 8GB of 1600MHz LPDDR3 memory
  • Configurable to 16GB.
  • 2.8GHz8GB of 1600MHz LPDDR3 memoryConfigurable to 16GB.

Storage

  • 1.4GHz500GB (5400-rpm) hard driveConfigurable to 1TB Fusion Drive.
  • 500GB (5400-rpm) hard drive
  • Configurable to 1TB Fusion Drive.
  • 2.6GHz1TB (5400-rpm) hard driveConfigurable to 1TB Fusion Drive or 256GB of flash storage (SSD).
  • 1TB (5400-rpm) hard drive
  • Configurable to 1TB Fusion Drive or 256GB of flash storage (SSD).
  • 2.8GHz1TB Fusion DriveConfigurable to 2TB Fusion Drive or 256GB, 512GB or 1TB of flash storage (SSD).
  • 1TB Fusion Drive
  • Configurable to 2TB Fusion Drive or 256GB, 512GB or 1TB of flash storage (SSD).

Operating System

  • macOS
  • macOS is the operating system that powers everything you do on a Mac. macOS Mojave brings new features inspired by its most powerful users, but designed for everyone. So you can get more out of every click. Learn more about latest operating system

Accessibility

  • Accessibility features help people with disabilities get the most out of their new Mac mini. With built-in support for vision, hearing, physical and motor skills, and learning and literacy, you can create and do amazing things. Learn more about Accessibility
  • Features include
  • VoiceOver
  • Zoom
  • Increase Contrast
  • Reduce Motion
  • Siri and Dictation
  • Switch Control
  • Closed Captions
  • Text to Speech

Built-in Apps

  • Photos
  • iMovie
  • GarageBand
  • Pages
  • Numbers
  • Keynote
  • Siri
  • Safari
  • Mail
  • FaceTime
  • Messages
  • Maps
  • News
  • Stocks
  • Home
  • Voice Memos
  • Notes
  • Calendar
  • Contacts
  • Reminders
  • Photo Booth
  • Preview
  • iTunes
  • Books
Show all (26)
  • App Store
  • Time Machine

In the Box

  • Mac mini
  • Power cord

Processor

  • 1.4GHz1.4GHz dual-core Intel Core i5 (Turbo Boost up to 2.7GHz) with 3MB on-chip shared L3 cache
  • 1.4GHz dual-core Intel Core i5 (Turbo Boost up to 2.7GHz) with 3MB on-chip shared L3 cache
  • 2.6GHz2.6GHz dual-core Intel Core i5 (Turbo Boost up to 3.1GHz) with 3MB on-chip shared L3 cacheConfigurable to 3.0GHz dual-core Intel Core i7 (Turbo Boost up to 3.5GHz) with 4MB on-chip shared L3 cache.
  • 2.6GHz dual-core Intel Core i5 (Turbo Boost up to 3.1GHz) with 3MB on-chip shared L3 cache
  • Configurable to 3.0GHz dual-core Intel Core i7 (Turbo Boost up to 3.5GHz) with 4MB on-chip shared L3 cache.
  • 2.8GHz2.8GHz dual-core Intel Core i5 (Turbo Boost up to 3.3GHz) with 3MB on-chip shared L3 cacheConfigurable to 3.0GHz dual-core Intel Core i7 (Turbo Boost up to 3.5GHz) with 4MB on-chip shared L3 cache.
  • 2.8GHz dual-core Intel Core i5 (Turbo Boost up to 3.3GHz) with 3MB on-chip shared L3 cache

Graphics

  • 1.4GHzIntel HD Graphics 5000
  • Intel HD Graphics 5000
  • 2.6GHzIntel Iris Graphics
  • Intel Iris Graphics
  • 2.8GHzIntel Iris Graphics

Size

  • Height1.4 inches (3.6 cm)
  • Width7.7 inches (19.7 cm)
  • Depth7.7 inches (19.7 cm)

Weight

  • 1.4GHz2.6 pounds (1.19 kg)
  • 2.6 pounds (1.19 kg)
  • 2.6GHz2.6 pounds (1.20 kg)
  • 2.6 pounds (1.20 kg)
  • 2.8GHz2.7 pounds (1.22 kg)
  • 2.7 pounds (1.22 kg)

Video Support

  • Support for up to two displays at 2560 by 1600 pixels, both at millions of colors
  • Thunderbolt digital video outputNative Mini DisplayPort outputDVI output using Mini DisplayPort to DVI Adapter (sold separately)VGA output using Mini DisplayPort to VGA Adapter (sold separately)Dual-link DVI output using Mini DisplayPort to Dual-Link DVI Adapter (sold separately)
  • Native Mini DisplayPort output
  • DVI output using Mini DisplayPort to DVI Adapter (sold separately)
  • VGA output using Mini DisplayPort to VGA Adapter (sold separately)
  • Dual-link DVI output using Mini DisplayPort to Dual-Link DVI Adapter (sold separately)
  • HDMI video outputSupport for 1080p resolution at up to 60HzSupport for 3840-by-2160 resolution at 30HzSupport for 4096-by-2160 resolution at 24Hz
  • Support for 1080p resolution at up to 60Hz
  • Support for 3840-by-2160 resolution at 30Hz
  • Support for 4096-by-2160 resolution at 24Hz
  • DVI output using HDMI to DVI Adapter (sold separately)

Audio

  • Audio line in minijack (digital/analog)
  • Audio line out/3.5 mm headphone jack (digital/analog)
  • HDMI port supports multichannel audio output
  • Support for Apple iPhone headset with microphone
  • Built-in speaker

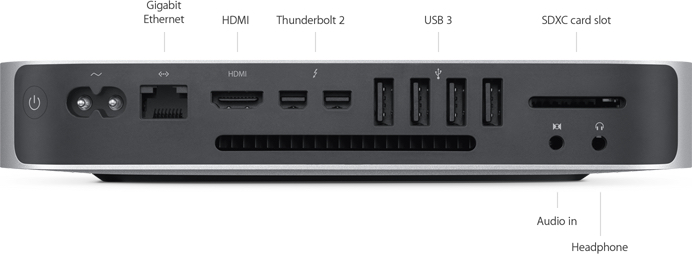

Connections and Expansions

  • Two Thunderbolt 2 ports (up to 20 Gbps)
  • Four USB 3 ports (up to 5 Gbps)
  • HDMI port
  • SDXC card slot
  • Gigabit Ethernet port
  • Audio in port
  • 3.5 mm headphone jack
  • IR receiver

Communications

  • Wi-Fi802.11ac Wi-Fi wireless networking; IEEE 802.11a/g/b/n compatible
  • 802.11ac Wi-Fi wireless networking; IEEE 802.11a/g/b/n compatible
  • BluetoothBluetooth 4.0 wireless technology
  • Bluetooth 4.0 wireless technology
  • Ethernet10/100/1000BASE-T Ethernet (RJ-45 connector)
  • 10/100/1000BASE-T Ethernet (RJ-45 connector)

Electrical and Operating Requirements

  • Line voltage100-240V AC
  • Frequency50Hz to 60Hz, single phase
  • Maximum continuous power85W
  • Operating temperature50° to 95° F (10° to 35° C)
  • Storage temperature-40° to 116° F (-40° to 47° C)
  • Relative humidity5% to 95% noncondensing
  • Operating altitudetested up to 10,000 feet
  • Typical acoustical performanceSound pressure level (operator position): 12dBA at idle

Configure to Order

  • Configure your Mac mini with these options, only at the Apple Online Store.
  • 1.4GHz8GB LPDDR3 memory16GB LPDDR3 memory1TB Fusion DriveApple Remote
  • 8GB LPDDR3 memory
  • 16GB LPDDR3 memory
  • 1TB Fusion Drive
  • Apple Remote
  • 2.6GHz16GB LPDDR3 memory.0GHz dual-core Intel Core i7 processor1TB Fusion Drive256GB flash storage (SSD)Apple Remote
  • 3.0GHz dual-core Intel Core i7 processor
  • 256GB flash storage (SSD)
Show all (13)
  • 2.8GHz16GB LPDDR3 memory.0GHz dual-core Intel Core i7 processor2TB Fusion Drive256GB flash storage (SSD)512GB flash storage (SSD)1TB flash storage (SSD)Apple Remote
  • 2TB Fusion Drive
  • 512GB flash storage (SSD)
  • 1TB flash storage (SSD)

Mac mini and the Environment

  • Apple takes a complete product life cycle approach to determining our environmental impact. Learn more about Mac mini and the Environment
  • Mac mini is designed with the following features to reduce its environmental impact
  • BFR-free
  • PVC-free
  • Highly recyclable aluminum enclosure
  • Meets ENERGY STAR 6.1 requirements
  • Rated EPEAT Gold
  • Apple and the Environment
  • Apple GiveBack
  • Letting go of your old Mac is easy with Apple GiveBack. If it’s in good shape, you can trade it in for Apple Store credit. If it’s not eligible for credit, we’ll recycle it responsibly at no cost to you. Good for you. Good for the planet.
  • See how it works

Acoustic Performance

  • Declared noise emission values in accordance with ECMA-109
  • Sound Power LevelL W A,m (B)Sound Pressure LevelOperator PositionL p A,m (dB)Idle.90 (K V = 0.25).0Wireless web.90 (K V = 0.25).5Hard drive seek.95 (K V = 0.25).0
  • L W A,m is the mean A-weighted sound power level, rounded to the nearest 0.05 B.
  • L p A,m is the mean A-weighted sound pressure level measured at the operator position (rounded to the nearest 0.5 dB).
  • 1 B (bel) = 10 dB (decibel)
  • K v is the statistical adder for computing upper-limit of A-weighted sound power level.
  • The quantity, L W A,c (formerly called L W Ad) may be computed from the sum of L W A,m and K v .
  • The Wireless web test browses 25 popular websites.
  • Configuration tested2.8GHz dual-core Intel Core i5 processor, 8GB memory, 1TB Fusion Drive, Intel Iris graphics.

Accessories

  • Wireless
  • Magic Keyboard
  • Magic Mouse 2
  • Magic Trackpad 2
  • Mac Software
  • Logic Pro X
  • Final Cut Pro X
  • Displays and Graphics
  • Apple HDMI to DVI Adapter
Show all (15)
  • Apple Mini DisplayPort to DVI Adapter
  • Apple Mini DisplayPort to VGA Adapter
  • Apple Mini DisplayPort to Dual-Link DVI Adapter
  • Other Accessories
  • Apple USB SuperDrive
  • AppleCare+ for Mac

Apple Mac mini (Late 2014) technical specifications

This page contains complete technical specifications for Apple Mac mini (Late 2014), including display, chip, storage, colors, model numbers, dimensions, weight, operating system, connectivity, battery information and other hardware details.

Use this information to compare Apple devices, identify the exact model, check compatibility and verify key hardware features before service, repair, resale or purchase.

Mac mini (Late 2014) — FAQ

What is the display size of Apple Mac mini (Late 2014)?

Apple Mac mini (Late 2014) has 1.4″.

What chip does Apple Mac mini (Late 2014) use?

Apple Mac mini (Late 2014) uses 1.4GHz1.4GHz dual-core Intel Core i5 (Turbo Boost up to 2.7….

What storage capacities are available for Apple Mac mini (Late 2014)?

Available storage capacities include 1TB, 500GB, 256GB, 2TB, 512GB.

What colors does Apple Mac mini (Late 2014) come in?

Apple Mac mini (Late 2014) is available in both at millions of colors, Native Mini DisplayPort output.

What are the dimensions and weight of Apple Mac mini (Late 2014)?

Apple Mac mini (Late 2014) measures 3.6 × 19.7 × 19.7 cm and weighs 1.19 kg.
