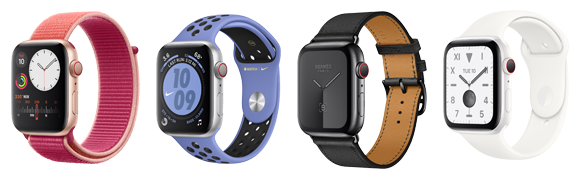

Apple Watch Series 5
Specs / Apple / Apple Watch Series 5

Apple Watch Series 5 Specifications

Complete Apple Watch Series 5 technical specifications · model numbers, colors, storage, dimensions and hardware details.

Chip: S5 SiP with 64-bit dual-core processor; W3Apple wireless chip; Apple wireless chip Display: 44mm368 by 448 pixels977 sq mm display areaOver 30% larger display than Series 3; 368 by … 368 by 448 pixel
Display
44mm368 by 448 pixels977 sq mm display areaOver 30% larger display than Series 3; 368 by 448 pixels; 977 sq m… · 368 by 448 pixel
Chip
S5 SiP with 64-bit dual-core processor; W3Apple wireless chip; Apple wireless chip
Storage / Colors
32GB · GPS + Cellular, AluminumSilverSpace GrayGold, Silver, Space Gray
Weight / OS
— · watchos

Apple Watch Series 5 technical specifications

This page contains complete technical specifications for Apple Watch Series 5, including display, chip, storage, colors, model numbers, dimensions, weight, operating system, connectivity, battery information and other hardware details.

Use this information to compare Apple devices, identify the exact model, check compatibility and verify key hardware features before service, repair, resale or purchase.

Display

  • 44mm368 by 448 pixels977 sq mm display areaOver 30% larger display than Series 3
  • 368 by 448 pixels
  • 977 sq mm display area
  • Over 30% larger display than Series 3
  • 40mm324 by 394 pixels759 sq mm display areaOver 30% larger display than Series 3
  • 324 by 394 pixels
  • 759 sq mm display area
  • Always-On Retina LTPO OLED display with Force Touch1000 nits brightness
  • 1000 nits brightness

Chip

  • S5 SiP with 64-bit dual-core processor
  • W3Apple wireless chip
  • Apple wireless chip

Connectivity

  • LTE and UMTS4GPS + Cellular modelsLearn more about available carriers
  • GPS + Cellular models
  • Wi-Fi802.11b/g/n 2.4GHz
  • 802.11b/g/n 2.4GHz
  • Bluetooth 5.0

iDimensions

  • 40mm
  • Height: 40mm
  • Width: 34mm
  • Depth: 10.74mm
  • 44mm
  • Height: 44mm
  • Width: 38mm

iFeatures

  • GPS/GNSS
  • Compass
  • Barometric altimeter
  • Water resistant50 meters1
  • 50 meters1
  • Electrical heart sensor
  • Second-generation optical heart sensor
  • International emergency calling3
  • Emergency SOS2
  • Accelerometerup to 32 g-forces with fall detection
  • up to 32 g-forces with fall detection
  • Gyroscope
  • Ambient light sensor
  • Speaker
  • Microphone
  • Apple Pay
  • GymKit
  • Capacity 32GB
  • Ceramic and sapphire crystal back

iFinishes

  • GPS + Cellular
  • AluminumSilverSpace GrayGold
  • Silver
  • Space Gray
  • Gold
  • Stainless SteelStainless SteelSpace Black (DLC)Gold (PVD)
  • Stainless Steel
  • Space Black (DLC)
  • Gold (PVD)
  • TitaniumTitaniumSpace black
  • Titanium
  • Space black
  • CeramicWhite
  • White
  • GPS
  • Apple Watch Nike available in silver and space gray aluminum.
  • Apple Watch Hermès available in stainless steel and space black stainless steel.

Power

  • Built-in rechargeable lithium-ion batteryUp to 18 hours5
  • Up to 18 hours5
  • Magnetic charging cable
  • USB power adapter

Weight

  • 40mm
  • Aluminum: 30.8g
  • Stainless Steel: 40.6g
  • Titanium: 35.1g
  • Ceramic: 39.7g
  • 44mm
  • Aluminum: 36.5g
  • Stainless Steel: 47.8g
  • Titanium: 41.7g
  • Ceramic: 46.7g

Apple Watch Series 5 FAQ

What is the display size of Apple Watch Series 5?

Apple Watch Series 5 has 44mm368 by 448 pixels977 sq mm display areaOver 30% larger display than Series 3; 368 by … with 368 by 448 pixel resolution.

What chip does Apple Watch Series 5 use?

Apple Watch Series 5 uses S5 SiP with 64-bit dual-core processor; W3Apple wireless chip; Apple wireless chip.

What storage capacities are available for Apple Watch Series 5?

Available storage capacities include 32GB.
