Apple TV 4K (1st generation) Technical specifications
It has the A10X Fusion chip with 64-bit architecture chip. Weight: 425 g.
- Display1.4″
- ChipA10X Fusion chip with…
- Weight425 g
Updated:
Apple TV 4K (1st generation): key specifications
| Display | 1.4″ |
|---|---|
| Chip | A10X Fusion chip with 64-bit architecture |
| Connector | HDMI 2.0a3 |
| Dimensions (H × W × D) | 35 × 98 × 98 mm |
| Weight | 425 g |
Complete specifications
Capacity
- 32GB2
- 64GB2
Size and Weight
- Apple TV 4K
- Height1.4 inches (35 mm)
- Width3.9 inches (98 mm)
- Depth3.9 inches (98 mm)
- Weight15 ounces (425 g)
Accessibility
- Accessibility features help people with disabilities get the most out of their Apple TV. With built-in support for vision, hearing, physical and motor skills, and learning and literacy, you can easily find and enjoy your favorite entertainment.
- Features include
- VoiceOver
- Zoom
- Increase Contrast
- Reduce Motion
- Closed Caption and SDH Support
- Audio Descriptions
- Siri and Dictation
- Switch Control
System Requirements
- Purchases, rentals, and Home Sharing require an Apple ID that you use for the App Store and other Apple services.
- Requires 802.11 wireless, Ethernet network, or Broadband Internet access
- Requires 4K and HDR TV for 4K and HDR streaming
- Requires acceptance of the software license terms at www.apple.com/legal/sla
- Requires HDMI cable (sold separately)
In the Box
- Apple TV 4K
- Siri Remote
- Power cord
- Lightning to USB cable
- Documentation

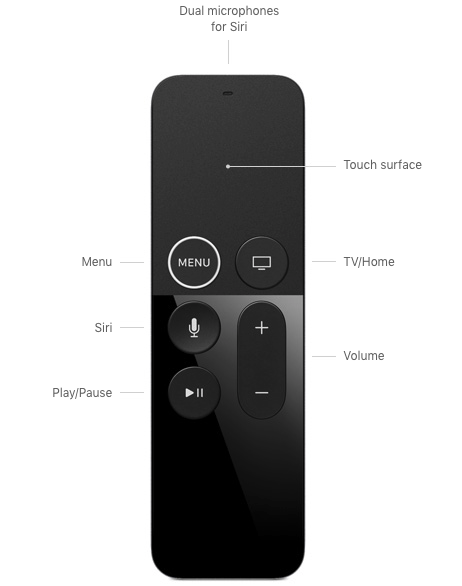

Siri Remote
- Size & Weight
- Height4.88 inches (124 mm)
- Width1.5 inches (38 mm)
- Depth0.25 inch (6.3 mm)
- Weight1.59 ounces (45 g)
- Features
- Bluetooth 4.0 wireless technology
- IR transmitter
- Accelerometer and three-axis gyro
- Lightning connector for charging
- Rechargeable battery providing months of battery life on a single charge (with typical daily usage)
- Charging via USB to computer system or power adapter (sold separately)
Ports and Interfaces
- HDMI 2.0a3
- 802.11ac Wi‑Fi with MIMO; simultaneous dual band (2.4GHz and 5GHz)
- Gigabit Ethernet
- Bluetooth 5.0 wireless technology
- IR receiver
- Built‑in power supply
Processor
- A10X Fusion chip with 64-bit architecture
Video Formats
- H.264/HEVC SDR video up to 2160p, 60 fps, Main/Main 10 profile
- HEVC Dolby Vision (Profile 5)/HDR10 (Main 10 profile) up to 2160p
- H.264 Baseline Profile level 3.0 or lower with AAC-LC audio up to 160 Kbps per channel, 48kHz, stereo audio in .m4v, .mp4, and .mov file formats
- MPEG-4 video up to 2.5 Mbps, 640 by 480 pixels, 30 fps, Simple profile with AAC-LC audio up to 160 Kbps, 48kHz, stereo audio in .m4v, .mp4, and .mov file formats
Audio Formats
- HE-AAC (V1), AAC (up to 320 Kbps), protected AAC (from iTunes Store), MP3 (up to 320 Kbps), MP3 VBR, Apple Lossless, FLAC, AIFF, and WAV; AC-3 (Dolby Digital 5.1), E-AC-3 (Dolby Digital Plus 7.1 surround sound), and Dolby Atmos
Photo Formats
- HEIF, JPEG, GIF, TIFF
Compatibility
- Apple TV is compatible with HD and UHD TVs with HDMI3
- Apple TV is compatible with Bluetooth keyboards
Apple TV and the Environment
- Apple takes a complete product life cycle approach to determining our environmental impact.
- Apple TV 4K and the Siri Remote are designed with the following features to reduce their environmental impact:
- Apple TV 4K
- BFR-free
- PVC-free
- Meets ENERGY STAR 5.0 requirements
- Siri Remote
- Arsenic-free glass
- Recyclable aluminum enclosure
- Apple and the Environment
- Read our Product Environmental Reports for detailed information on the environmental performance of every Apple product.
Apple TV 4K (1st generation) technical specifications
This page contains complete technical specifications for Apple TV 4K (1st generation), including display, chip, storage, colors, model numbers, dimensions, weight, operating system, connectivity, battery information and other hardware details.
Use this information to compare Apple devices, identify the exact model, check compatibility and verify key hardware features before service, repair, resale or purchase.
Apple TV 4K (1st generation) — FAQ
What is the display size of Apple TV 4K (1st generation)?
Apple TV 4K (1st generation) has 1.4″.
What chip does Apple TV 4K (1st generation) use?
Apple TV 4K (1st generation) uses A10X Fusion chip with 64-bit architecture.
What are the dimensions and weight of Apple TV 4K (1st generation)?
Apple TV 4K (1st generation) measures 35 × 98 × 98 mm and weighs 425 g.
