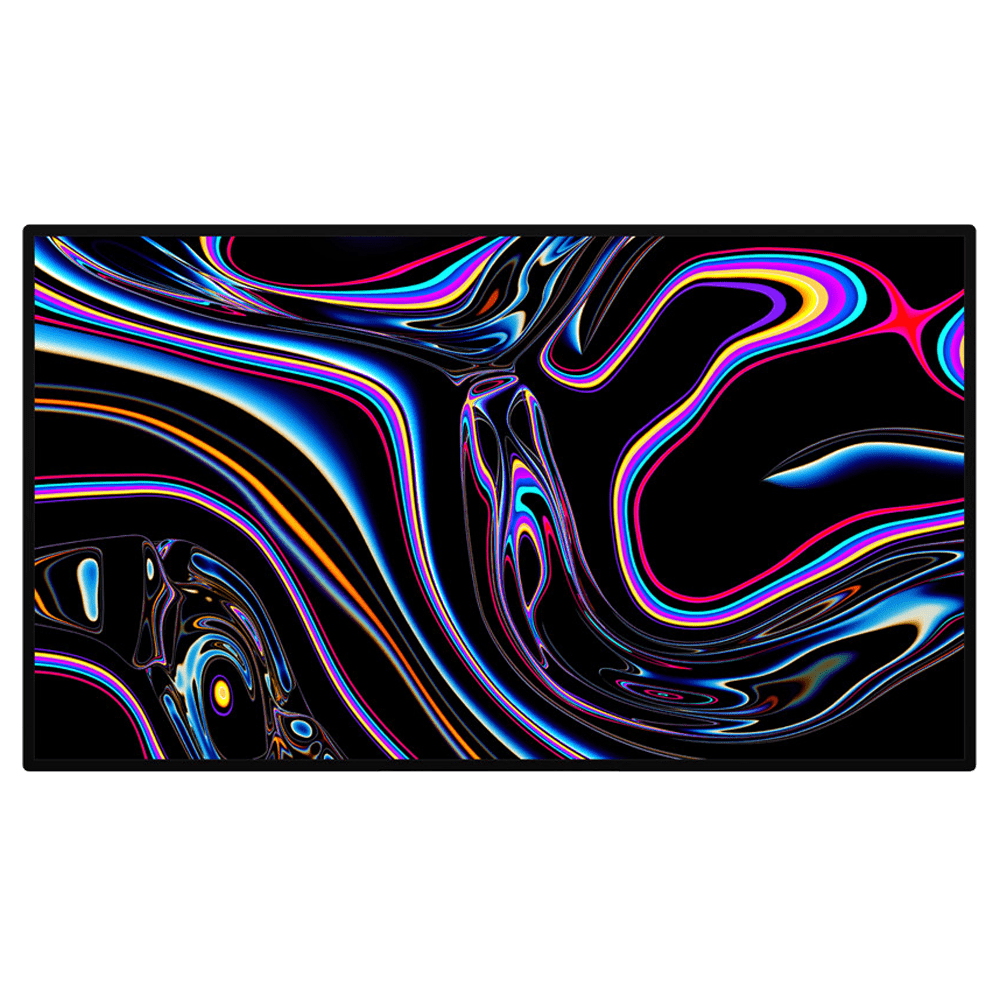

Pro Display XDR
Specs / Apple / Pro Display XDR

Pro Display XDR Specifications

Complete Apple Pro Display XDR technical specifications · Released 2019 · model numbers, colors, storage, dimensions and hardware details.

Chip: 2D backlighting system using 576 full array local dimming zones; Apple-designed timing co… Display: Retina 6K Display; 32-inch (diagonal) IPS LCD display with oxide TFT technology; Resoluti… 6016 by 3384 pixel
Check IMEI / Serial All specs
Display
Retina 6K Display; 32-inch (diagonal) IPS LCD display with oxide TFT technology; Resolution: 6016 by 3384 pix… · 6016 by 3384 pixel
Chip
2D backlighting system using 576 full array local dimming zones; Apple-designed timing controller (TCON) chip engineere…
Storage / Colors
— · Standard glass, Nano-texture glass
Weight / OS
7480 g · macOS

Apple Pro Display XDR technical specifications

This page contains complete technical specifications for Apple Pro Display XDR, including display, chip, storage, colors, model numbers, dimensions, weight, operating system, connectivity, battery information and other hardware details.

Use this information to compare Apple devices, identify the exact model, check compatibility and verify key hardware features before service, repair, resale or purchase.

iFinish

  • Standard glass
  • Nano-texture glass

↔Size and Weight

  • Width: 28.3 inches (71.8 cm)
  • Height: 16.2 inches (41.2 cm)
  • Depth: 1.1 inches (2.7 cm)
  • Weight: 16.49 pounds (7.48 kg)2

▣Display

  • Retina 6K Display
  • 32-inch (diagonal) IPS LCD display with oxide TFT technology
  • Resolution: 6016 by 3384 pixels (20.4 million pixels) at 218 pixels per inch
  • Aspect ratio: 16:9
  • XDR (Extreme Dynamic Range)
  • Viewing angle: Superwide angle with high-fidelity color and contrast at 89º left, 89º right, 89º up, 89º down
  • Fully laminated; 1.65% reflectivity (typical)
  • Contrast ratio: 1,000,000:1
  • Color: P3 wide color gamut, 10-bit depth for 1.073 billion colors
  • XDR brightness: 1000 nits sustained full‑screen, 1600 nits peak1 (HDR content only)
  • SDR brightness: 500 nits
  • Pro Stand and VESA Mount Adapter sold separately

iIn the Box

  • Pro Display XDR
  • Power cord (2 m)
  • Apple Thunderbolt 3 Pro Cable (2 m)
  • Polishing cloth

iCompatibility

  • Pro Display XDR is compatible with the following Mac models running macOS Catalina 10.15.2 or later:
  • Mac Pro (2023)
  • Mac Pro (2019) with MPX Module GPUs
  • Mac Studio (2022 or later)
  • Mac mini (2018 or later)
  • 16-inch MacBook Pro (2019 or later)
  • 14-inch MacBook Pro (2021 or later)
  • 15-inch MacBook Pro (2018 or later)
  • 13-inch MacBook Pro (2016 or later)
  • MacBook Air (2020 or later)
  • 27-inch iMac (2019 or later)
  • 24-inch iMac (2021 or later)
  • 21.5-inch iMac (2019)
  • iMac Pro (2017)
  • Any Mac model with Thunderbolt 3 ports paired with Blackmagic eGPU or Blackmagic eGPU Pro

⌁Connections

  • One upstream port for Mac Pro or other Thunderbolt 3 host (96W host charging)
  • Three USB-C (USB 2) ports for charging or syncing3
  • Learn more about Thunderbolt 3
  • Learn more about SDI connectivity

iElectrical and Operating Requirements

  • Line voltage: 100–240V AC
  • Frequency: 50Hz to 60Hz, single phase
  • Operating temperature: 50° to 95° F (10° to 35° C)
  • Relative humidity: 5% to 95% noncondensing
  • Maximum altitude: tested up to 16,400 feet (5000 meters)

▣Pro Display XDR and the Environment

  • Apple takes a complete product life cycle approach to determining our environmental impact.
  • Learn more about Pro Display XDR and the Environment
  • Pro Display XDR is designed with the following features to reduce its environmental impact:
  • Made with better materials
  • Enclosure made with low-carbon aluminum
  • Energy efficient
  • Meets ENERGY STAR requirements4
  • Responsible packaging
  • Recyclable, majority-fiber packaging
  • 100% of primary wood fiber comes from responsibly managed forests
  • Smarter chemistry
  • Arsenic-free display glass
  • Mercury-free LED-backlit display
  • BFR-, PVC-, and beryllium-free

iReference Modes

  • Available reference modes:
  • Pro Display XDR (P3-1600 nits)
  • HDR Video (P3-ST 2084)
  • NTSC Video (BT.601 SMPTE-C)
  • Digital Cinema (P3-DCI)
  • Design and Print (P3-D50)
  • Internet and Web (sRGB)
  • Apple Display (P3-500 nits)
  • HDTV Video (BT.709-BT.1886)
  • PAL and SECAM Video (BT.601 EBU)
  • Digital Cinema (P3-D65)
  • Photography (P3-D65)

iRefresh Rates

  • 47.95Hz
  • 48.00Hz
  • 50.00Hz
  • 59.94Hz
  • 60.00Hz

iSoftware Features

  • The following features require macOS Catalina 10.15.2 or later:
  • Reference mode selection
  • Reference status indicator
  • Brightness control
  • Portrait/landscape detection
  • Night Shift
  • True Tone
  • Dolby Vision, HDR10, and Hybrid-Log Gamma (HLG) playback support
  • User calibration

iTechnology

  • 2D backlighting system using 576 full array local dimming zones
  • Apple-designed timing controller (TCON) chip engineered to precisely control high-speed modulation of both 20.4 million LCD pixels and 576 LEDs in backlight for seamless synchronization
  • True Tone technology with dual ambient light sensor (ALS) design to ensure an accurate viewing experience in any ambient lighting condition

Pro Display XDR FAQ

What year was Apple Pro Display XDR released?

Apple Pro Display XDR was released in 2019.

What is the display size of Apple Pro Display XDR?

Apple Pro Display XDR has Retina 6K Display; 32-inch (diagonal) IPS LCD display with oxide TFT technology; Resoluti… with 6016 by 3384 pixel resolution.

What chip does Apple Pro Display XDR use?

Apple Pro Display XDR uses 2D backlighting system using 576 full array local dimming zones; Apple-designed timing co….
