Mac Studio (2025)
Specs / Apple / Mac Studio (2025)

Mac Studio (2025) Specifications

Complete Apple Mac Studio (2025) technical specifications · Released 2025 · model numbers, colors, storage, dimensions and hardware details.

Chip: Apple M4 Max chip; 14-core CPU with 10 performance cores and 4 efficiency cores; 32-core … Display: Apple M4 Max chip; Simultaneous support for up to five displays:; Up to four displays wit…
Check IMEI / Serial All specs
Display
Apple M4 Max chip; Simultaneous support for up to five displays:; Up to four displays with 6K resolution at 6…
Chip
Apple M4 Max chip; 14-core CPU with 10 performance cores and 4 efficiency cores; 32-core GPU; Hardware-accelerated ray …
Storage / Colors
512GB, 1TB, 2TB, 4TB, 8TB · Silver
Weight / OS
2740 g · macOS

Apple Mac Studio (2025) technical specifications

This page contains complete technical specifications for Apple Mac Studio (2025), including display, chip, storage, colors, model numbers, dimensions, weight, operating system, connectivity, battery information and other hardware details.

Use this information to compare Apple devices, identify the exact model, check compatibility and verify key hardware features before service, repair, resale or purchase.

iFinish

  • Silver

↔Size and Weight

  • Height: 3.7 inches (9.5 cm)
  • Width: 7.7 inches (19.7 cm)
  • Depth: 7.7 inches (19.7 cm)
  • Weight (M4 Max): 6.1 pounds (2.74 kg)4
  • Weight (M3 Ultra): 8.0 pounds (3.64 kg)4

⚙Chip

  • Apple M4 Max chip
  • 14-core CPU with 10 performance cores and 4 efficiency cores
  • 32-core GPU
  • Hardware-accelerated ray tracing
  • 16-core Neural Engine
  • 410GB/s memory bandwidth
  • Media Engine
  • Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
  • Video decode engine
  • Two video encode engines
  • Two ProRes encode and decode engines
  • AV1 decode
  • Configurable to:
  • M4 Max with 16‑core CPU, 40‑core GPU, and 16‑core Neural Engine (546GB/s memory bandwidth)
  • Apple M3 Ultra chip
  • 28-core CPU with 20 performance cores and 8 efficiency cores
  • 60-core GPU
  • 32-core Neural Engine
  • 819GB/s memory bandwidth
  • Two video decode engines
  • Four video encode engines
  • Four ProRes encode and decode engines
  • M3 Ultra with 32‑core CPU, 80‑core GPU, and 32‑core Neural Engine (819GB/s memory bandwidth)

iOperating System

  • macOS
  • macOS is the most advanced desktop operating system in the world. It helps you stay productive and creative with help from Apple Intelligence, iPhone Mirroring,5 window tiling, major updates to Safari, and more.
  • macOS User Guide

iAccessibility

  • Accessibility features help people with disabilities get the most out of their new Mac Studio. With built-in support for vision, hearing, mobility, and learning, you can create and do amazing things.
  • Learn more about Accessibility
  • Features include:
  • Voice Control
  • Increase Contrast
  • Switch Control
  • VoiceOver
  • Reduce Motion
  • Live Captions
  • Zoom
  • Siri and Dictation

iIn the Box

  • Mac Studio
  • Power cord

iAcoustic Performance

  • Declared noise emission values in accordance with ECMA-109
  • Acoustic PerformanceSound Power LevelL W A,m (B)Sound Pressure LevelOperator PositionL p A,m (dB)Idle1.6 (K V = 0.3)7Wireless web1.6 (K V = 0.3)7
  • L W A,m is the mean A-weighted sound power level, rounded to the nearest 0.1 B.
  • L p A,m is the mean A-weighted sound pressure level measured at operator position (rounded to the nearest 1 dB).
  • 1 B (bel) = 10 dB (decibel)
  • K v is the statistical adder for computing upper-limit of A-weighted sound power level.
  • The quantity, L W A,c (formerly called L W Ad) may be computed from the sum of L W A,m and K v .
  • The wireless web test browses 6 tabs with a mix of content including media.
  • Configuration tested: M3 Ultra, 28-core CPU, 60-core GPU, 96GB unified memory, 1TB storage.

iApple Intelligence1

  • Apple Intelligence is the personal intelligence system that helps you write, express yourself, and get things done effortlessly. With groundbreaking privacy protections, it gives you peace of mind that no one else can access your data — not even Apple.
  • Learn more about Apple Intelligence

iAudio

  • Built-in speaker
  • 3.5 mm headphone jack with advanced support for high-impedance headphones
  • HDMI port supports multichannel audio output

iBuilt-in Apps6

  • App Store
  • Books
  • Calendar
  • Contacts
  • FaceTime
  • Find My
  • Freeform
  • GarageBand
  • Home
  • iMovie
  • iPhone Mirroring
  • Keynote
  • Mail
  • Maps
  • Messages
  • Music
  • News
  • Notes
  • Numbers
  • Pages
  • Passwords
  • Photo Booth
  • Photos
  • Podcasts
  • Preview
  • QuickTime Player
  • Reminders
  • Safari
  • Shortcuts
  • Stocks
  • Time Machine
  • Tips
  • TV
  • Voice Memos
  • Weather

iCommunications

  • Wi-Fi
  • Wi-Fi 6E (802.11ax)3
  • Bluetooth
  • Bluetooth 5.3
  • Ethernet
  • 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)

iConfigure to Order

  • Configure your Mac Studio with these options at apple.com:
  • M4 Max with 16‑core CPU, 40‑core GPU, and 16‑core Neural Engine
  • 48GB, 64GB, or 128GB unified memory (M4 Max with 16-core CPU and 40‑core GPU)
  • 1TB, 2TB, 4TB, or 8TB SSD
  • M3 Ultra with 32‑core CPU, 80‑core GPU, and 32‑core Neural Engine
  • 2TB, 4TB, 8TB, or 16TB SSD

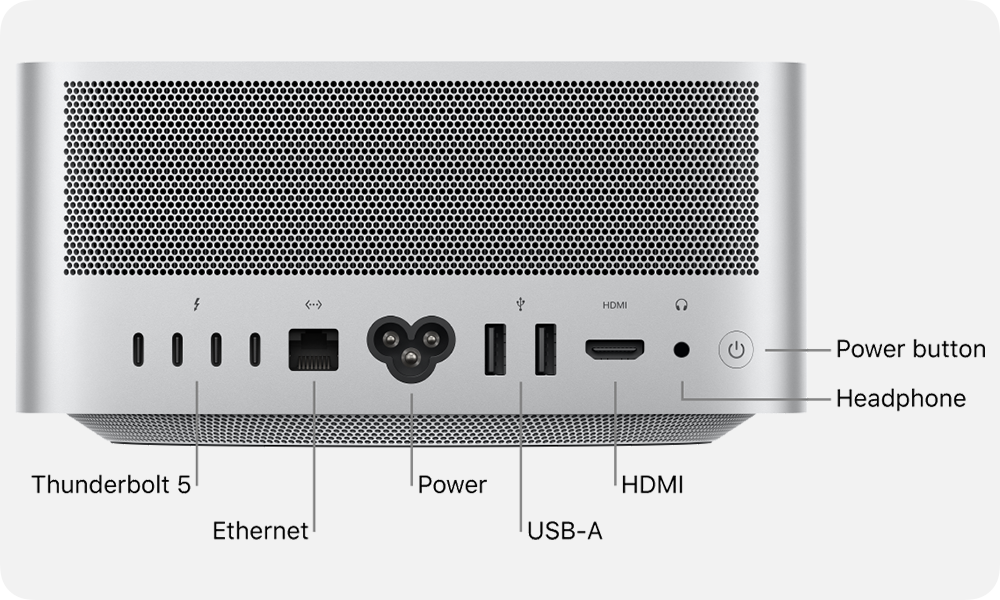

⌁Connections and Expansion

  • Four Thunderbolt 5 (USB‑C) ports with support for:
  • Thunderbolt 5 (up to 120Gb/s)
  • USB 4 (up to 120Gb/s)
  • USB 3 (up to 10Gb/s)
  • DisplayPort 2.1
  • Two USB 3 (USB‑A) ports (up to 5Gb/s)
  • HDMI 2.1 port
  • 10Gb Ethernet
  • 3.5 mm headphone jack

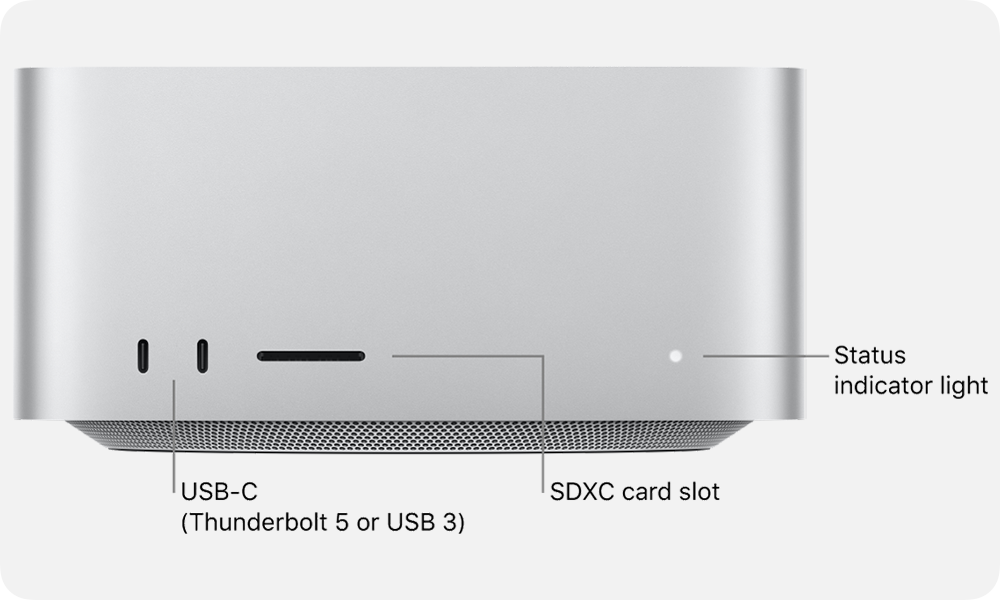

  • On front (M4 Max):
  • Two USB‑C ports (up to 10Gb/s)
  • SDXC card slot (UHS-II)
  • On front (M3 Ultra):
  • Two Thunderbolt 5 ports (up to 120Gb/s)

▣Display Support

  • Apple M4 Max chip
  • Simultaneous support for up to five displays:
  • Up to four displays with 6K resolution at 60Hz over Thunderbolt and one display with 4K resolution at 144Hz over HDMI
  • Up to two displays with 6K resolution at 60Hz over Thunderbolt and one display with 8K resolution at 60Hz or 4K resolution at up to 240Hz over HDMI
  • Apple M3 Ultra chip
  • Simultaneous support for up to eight displays:
  • Eight displays with up to 6K resolution at 60Hz or 4K resolution at up to 144Hz
  • Four displays with up to 8K resolution at 60Hz or 4K resolution at up to 240Hz
  • Thunderbolt 5 digital video output
  • Support for native DisplayPort 2.1 output over USB‑C
  • HDMI display video output
  • Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz
  • Support for variable refresh rate (VRR), HDR, and multichannel audio

iElectrical and Operating Requirements

  • Line voltage: 100–240V AC
  • Frequency: 50Hz to 60Hz, single phase
  • Maximum continuous power: 480W
  • Operating temperature: 50° to 95° F (10° to 35° C)
  • Storage temperature: –40° to 116° F (–40° to 47° C)
  • Relative humidity: 5% to 95% noncondensing
  • Operating altitude: tested up to 16,400 feet (5000 meters)

iMac Studio and the Environment

  • Mac Studio is designed to reduce environmental impact:7
  • See the Mac Studio Product Environmental Report (PDF)
  • Progress toward Apple 2030
  • More than 30% recycled content8
  • Over 35% of manufacturing electricity sourced from low-carbon electricity9
  • Over 30% emissions reduction against business-as-usual scenario as modeled by Apple10
  • See Apple’s commitment
  • Materials
  • 100% recycled aluminum in the enclosure and thermal module chassis
  • 100% recycled copper in multiple printed circuit boards
  • 100% recycled gold in the plating of all Apple-designed printed circuit boards and multiple connectors
  • 100% recycled rare earth elements in all magnets
  • 100% recycled tin in the solder of multiple printed circuit boards
  • 100% recycled copper and zinc in the prongs of the power cord plug and AC inlet
  • At least 25% recycled plastic in three components
  • 100% fiber-based packaging11
  • 59% recycled content in fiber-based packaging
  • Energy
  • Over 35% of manufacturing electricity for Mac Studio is sourced from low-carbon electricity
  • ENERGY STAR® certified12
  • Waste
  • No established final assembly sites generate waste sent to landfill as part of Apple’s Zero Waste Program
  • Smarter chemistry13
  • Mercury-, BFR-, and PVC-free

iMemory

  • Apple M4 Max chip
  • 36GB unified memory
  • Configurable to:
  • 48GB, 64GB, or 128GB (M4 Max with 16-core CPU and 40‑core GPU)
  • Apple M3 Ultra chip
  • 96GB unified memory
  • 256GB

iStorage2

  • Apple M4 Max chip
  • 512GB SSD
  • Configurable to:
  • 1TB, 2TB, 4TB, or 8TB
  • Apple M3 Ultra chip
  • 1TB SSD
  • 2TB, 4TB, 8TB, or 16TB

Mac Studio (2025) FAQ

What year was Apple Mac Studio (2025) released?

Apple Mac Studio (2025) was released in 2025.

What is the display size of Apple Mac Studio (2025)?

Apple Mac Studio (2025) has Apple M4 Max chip; Simultaneous support for up to five displays:; Up to four displays wit….

What chip does Apple Mac Studio (2025) use?

Apple Mac Studio (2025) uses Apple M4 Max chip; 14-core CPU with 10 performance cores and 4 efficiency cores; 32-core ….

What storage capacities are available for Apple Mac Studio (2025)?

Available storage capacities include 512GB, 1TB, 2TB, 4TB, 8TB, 16TB.
