Mac Studio (2023)
Specs / Apple / Mac Studio (2023)

Mac Studio (2023) Specifications

Complete Apple Mac Studio (2023) technical specifications · Released 2023 · model numbers, colors, storage, dimensions and hardware details.

Chip: Apple M2 Max chip; 12-core CPU with 8 performance cores and 4 efficiency cores; 30-core G… Display: Apple M2 Max chip; Simultaneous support for up to five displays:; Four displays with 6K r…
Check IMEI / Serial All specs
Display
Apple M2 Max chip; Simultaneous support for up to five displays:; Four displays with 6K resolution at 60Hz ov…
Chip
Apple M2 Max chip; 12-core CPU with 8 performance cores and 4 efficiency cores; 30-core GPU; 16-core Neural Engine; 400…
Storage / Colors
512GB, 1TB, 2TB, 4TB, 8TB · Silver
Weight / OS
2700 g · macOS

Apple Mac Studio (2023) technical specifications

This page contains complete technical specifications for Apple Mac Studio (2023), including display, chip, storage, colors, model numbers, dimensions, weight, operating system, connectivity, battery information and other hardware details.

Use this information to compare Apple devices, identify the exact model, check compatibility and verify key hardware features before service, repair, resale or purchase.

iFinish

  • Silver

↔Size and Weight

  • Height: 3.7 inches (9.5 cm)
  • Width: 7.7 inches (19.7 cm)
  • Depth: 7.7 inches (19.7 cm)
  • Weight (M2 Max): 5.9 pounds (2.7 kg)3
  • Weight (M2 Ultra): 7.9 pounds (3.6 kg)3

⚙Chip

  • Apple M2 Max chip
  • 12-core CPU with 8 performance cores and 4 efficiency cores
  • 30-core GPU
  • 16-core Neural Engine
  • 400GB/s memory bandwidth
  • Media engine
  • Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
  • Video decode engine
  • Two video encode engines
  • Two ProRes encode and decode engines
  • Configurable to:
  • M2 Max with 12-core CPU, 38-core GPU, and 16-core Neural Engine
  • Apple M2 Ultra chip
  • 24-core CPU with 16 performance cores and 8 efficiency cores
  • 60-core GPU
  • 32-core Neural Engine
  • 800GB/s memory bandwidth
  • Two video decode engines
  • Four video encode engines
  • Four ProRes encode and decode engines
  • M2 Ultra with 24-core CPU, 76-core GPU, and 32-core Neural Engine

iOperating System

  • macOS
  • macOS is the most advanced desktop operating system in the world. macOS Sequoia helps you be productive and creative in new ways — with window tiling, major updates to Safari, iPhone Mirroring, and support for Apple Intelligence.4
  • Learn more about latest operating system
  • macOS User Guide

iAccessibility

  • Accessibility features help people with disabilities get the most out of their new Mac Studio. With built-in support for vision, hearing, mobility, and learning, you can create and do amazing things.
  • Learn more about Accessibility
  • Features include:
  • Voice Control
  • VoiceOver
  • Zoom
  • Increase Contrast
  • Reduce Motion
  • Siri and Dictation
  • Switch Control
  • Live Captions

iIn the Box

  • Mac Studio
  • Power cord

iAcoustic Performance

  • Declared noise emission values in accordance with ECMA-109
  • Sound Power LevelL W A,m (B)Sound Pressure LevelOperator PositionL p A,m (dB)Idle1.5 (K V = 0.3)6Wireless web1.5 (K V = 0.3)6
  • L W A,m is the mean A-weighted sound power level, rounded to the nearest 0.1 B.
  • L p A,m is the mean A-weighted sound pressure level measured at operator position (rounded to the nearest 1 dB).
  • 1 B (bel) = 10 dB (decibel)
  • K v is the statistical adder for computing upper-limit of A-weighted sound power level.
  • The quantity, L W A,c (formerly called L W Ad) may be computed from the sum of L W A,m and K v .
  • The wireless web test browses 6 tabs with a mix of content including media.
  • Configuration tested: Mac Studio with M2 Ultra Chip, 24-core CPU / 60-core GPU, 64GB unified memory, 1TB storage.

iAudio

  • Built-in speaker
  • 3.5 mm headphone jack with advanced support for high-impedance headphones
  • HDMI port supports multichannel audio output

iBuilt-in Apps5

  • App Store
  • Books
  • Calendar
  • Contacts
  • FaceTime
  • Find My
  • Freeform
  • GarageBand
  • Home
  • iMovie
  • Keynote
  • Mail
  • Maps
  • Messages
  • Music
  • News
  • Notes
  • Numbers
  • Pages
  • Passwords
  • Photo Booth
  • Photos
  • Podcasts
  • Preview
  • QuickTime Player
  • Reminders
  • Safari
  • Shortcuts
  • Siri
  • Stocks
  • Time Machine
  • Tips
  • TV
  • Voice Memos
  • Weather

iCommunications

  • Wi-Fi
  • Wi-Fi 6E (802.11ax)2
  • Bluetooth
  • Bluetooth 5.3
  • Ethernet
  • 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)

iConfigure to Order

  • Configure your Mac Studio with these options at apple.com:
  • M2 Max with 12-core CPU, 38-core GPU, and 16-core Neural Engine
  • M2 Ultra with 24-core CPU, 76-core GPU, and 32-core Neural Engine
  • 64GB unified memory (M2 Max)
  • 96GB unified memory (M2 Max with 38-core GPU)
  • 128GB unified memory (M2 Ultra)
  • 192GB unified memory (M2 Ultra)
  • 1TB, 2TB, 4TB, or 8TB SSD

⌁Connections and Expansion

  • Four Thunderbolt 4 ports with support for:
  • Thunderbolt 4 (up to 40Gb/s)
  • DisplayPort
  • USB 4 (up to 40Gb/s)
  • USB 3.1 Gen 2 (up to 10Gb/s)
  • Two USB-A ports (up to 5Gb/s)
  • HDMI port
  • 10Gb Ethernet
  • 3.5 mm headphone jack

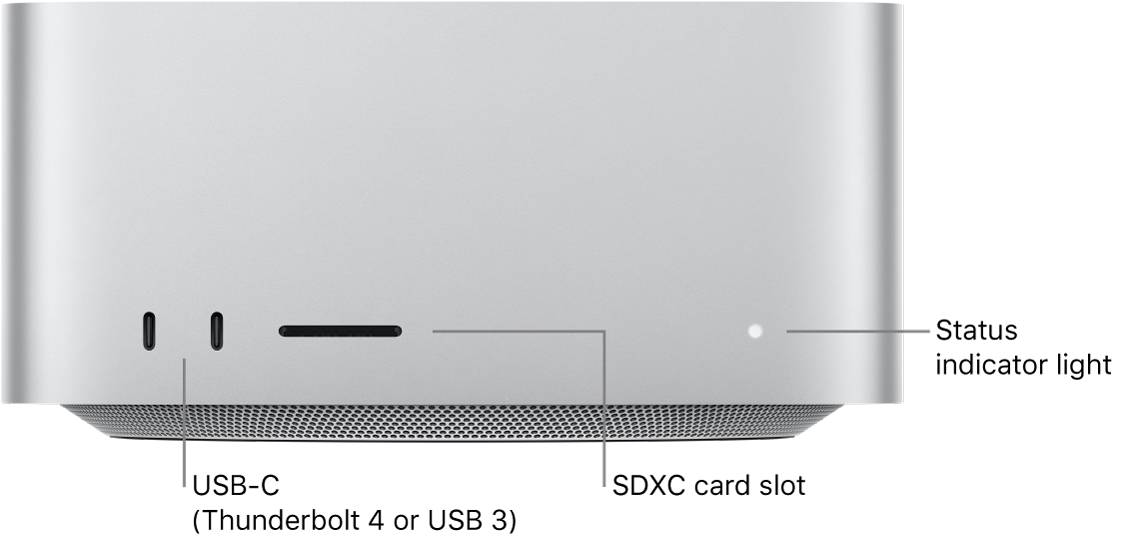

  • On front (M2 Max):
  • Two USB-C ports (up to 10Gb/s)
  • SDXC card slot (UHS-II)
  • On front (M2 Ultra):
  • Two Thunderbolt 4 ports (up to 40Gb/s)

▣Display Support

  • Apple M2 Max chip
  • Simultaneous support for up to five displays:
  • Four displays with 6K resolution at 60Hz over Thunderbolt and one display with 4K resolution at 60Hz over HDMI
  • Two displays with 6K resolution at 60Hz over Thunderbolt and one display with 8K resolution at 60Hz or 4K resolution at up to 240Hz over HDMI
  • Apple M2 Ultra chip
  • Simultaneous support for up to eight displays:
  • Eight displays with up to 4K resolution at 60Hz
  • Six displays with up to 6K resolution at 60Hz
  • Three displays with up to 8K resolution at 60Hz
  • Thunderbolt 4 digital video output
  • Support for native DisplayPort output over USB‑C
  • HDMI display video output
  • Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz
  • Support for variable refresh rate (VRR), HDR, and multichannel audio

iElectrical and Operating Requirements

  • Line voltage: 100–240V AC
  • Frequency: 50Hz to 60Hz, single phase
  • Maximum continuous power: 370W
  • Operating temperature: 50° to 95° F (10° to 35° C)
  • Storage temperature: –40° to 116° F (–40° to 47° C)
  • Relative humidity: 5% to 95% noncondensing
  • Operating altitude: tested up to 16,400 feet (5000 meters)

iMac Studio and the Environment

  • Mac Studio is designed with the following features to reduce its environmental impact:6
  • See the Mac Studio Product Environmental Report (PDF)
  • Made with better materials
  • 34% recycled content in the entire product,7 including:
  • 100% recycled aluminum in the enclosure
  • 100% recycled rare earth elements in all magnets
  • 100% recycled gold in the plating of multiple printed circuit boards
  • 100% recycled tin in the solder of multiple printed circuit boards
  • 100% recycled copper and zinc in the prongs of the power cord plug and AC inlet
  • 25% or more recycled plastic in multiple components
  • Energy efficient
  • ENERGY STAR® certified8
  • Smarter chemistry9
  • Mercury-, BFR-, PVC-, and beryllium‑free
  • Green manufacturing
  • Over 30% of manufacturing electricity sourced from supplier clean energy projects10
  • No established final assembly supplier sites generate any waste sent to landfill11
  • Responsible packaging
  • 100% of virgin wood fiber comes from responsibly managed forests12
  • 99% fiber-based due to our work to eliminate plastic in packaging13
  • Progress toward our 2030 goal
  • Reduced emissions for Mac Studio by 34% against our baseline14
  • Apple and the Environment
  • Today, Apple is carbon neutral for global corporate operations, and we are focused on our Apple 2030 goal to make every product carbon neutral.
  • See Apple’s commitment

iMemory

  • Apple M2 Max chip
  • 32GB unified memory
  • Configurable to:
  • 64GB (M2 Max) or 96GB (M2 Max with 38‑core GPU)
  • Apple M2 Ultra chip
  • 64GB unified memory
  • 128GB or 192GB

iStorage1

  • Apple M2 Max chip
  • 512GB SSD
  • Configurable to:
  • 1TB, 2TB, 4TB, or 8TB
  • Apple M2 Ultra chip
  • 1TB SSD
  • 2TB, 4TB, or 8TB

Mac Studio (2023) FAQ

What year was Apple Mac Studio (2023) released?

Apple Mac Studio (2023) was released in 2023.

What is the display size of Apple Mac Studio (2023)?

Apple Mac Studio (2023) has Apple M2 Max chip; Simultaneous support for up to five displays:; Four displays with 6K r….

What chip does Apple Mac Studio (2023) use?

Apple Mac Studio (2023) uses Apple M2 Max chip; 12-core CPU with 8 performance cores and 4 efficiency cores; 30-core G….

What storage capacities are available for Apple Mac Studio (2023)?

Available storage capacities include 512GB, 1TB, 2TB, 4TB, 8TB.
