Mac mini (Late 2012)
specs / Apple / Mac mini (Late 2012)

Mac mini (Late 2012) Technical specifications

Complete Apple Mac mini (Late 2012) specifications · View model numbers, colors, dimensions, storage, display, chip, battery and full technical details.

Chip: 2.5GHz; 2.5GHz dual-core Intel Core i5 (Turbo Boost up to 3.1GHz) with 3MB L3 cache; 2.3G… Display: Support for up to two displays at 2560 by 1600 pixels, both at millions of colors; Thunde… 2560 by 1600 pixel
Check IMEI / Serial All specs
Display
Support for up to two displays at 2560 by 1600 pixels, both at millions of colors; Thunderbolt digital video … · 2560 by 1600 pixel
Chip
2.5GHz; 2.5GHz dual-core Intel Core i5 (Turbo Boost up to 3.1GHz) with 3MB L3 cache; 2.3GHz; 2.3GHz quad-core Intel Cor…
Storage / Colors
500GB, 1TB, 256GB · Support for up to two displays at 2560 by 1600 pixels, both at millions of colors, Thunderbolt digital video output, Native Mini DisplayPort output
Weight / Operating System
1220 g

Apple Mac mini (Late 2012) technical specifications

This page contains complete technical specifications for Apple Mac mini (Late 2012), including display, chip, storage, colors, model numbers, dimensions, weight, operating system, connectivity, battery information and other hardware details.

Use this information to compare Apple devices, identify the exact model, check compatibility and verify key hardware features before service, repair, resale or purchase.

↔Size and Weight

  • Height: 1.4 inches (3.6 cm)
  • Width: 7.7 inches (19.7 cm)
  • Depth: 7.7 inches (19.7 cm)
  • Weight: 2.7 pounds (1.22 kg)1

iIn the Box

  • Mac mini
  • HDMI to DVI Adapter
  • Power cord

iAccessories

  • Mac Software
  • iWork
  • Aperture
  • Logic Pro
  • Final Cut Pro X
  • Displays and Graphics
  • Apple Thunderbolt Display
  • Apple Mini DisplayPort to DVI Adapter
  • Apple Mini DisplayPort to VGA Adapter
  • Apple Mini DisplayPort to Dual-Link DVI Adapter
  • AirPort and Wireless
  • Time Capsule
  • AirPort Express Base Station
  • AirPort Extreme Base Station
  • Apple Magic Trackpad
  • Apple Wireless Keyboard
  • Apple Magic Mouse
  • Other Accessories
  • Apple USB SuperDrive
  • Apple Keyboard
  • AppleCare Protection Plan

iAcoustic Performance

  • DECLARED NOISE EMISSIONS in accordance with ISO 9296
  • Sound Power LevelLWAd (B)1 B = 10 dBSound Pressure LevelOperator PositionLpAm (dB)2.3GHz2.5GHz2.3GHz2.5GHzIdle2.62.61412Hard drive accessing2.72.61614CD drive accessingN/AN/AN/AN/A
  • LWAd is the statistical upper-limit A-weighted sound power level (rounded to the nearest 0.1 B).
  • LpAm is the mean A-weighted sound pressure level measured at the operator position (rounded to the nearest dB).
  • 1 B (bel) = 10 dB (decibel).

iAudio

  • Audio line in minijack (digital/analog)
  • Audio line out/headphone minijack (digital/analog)
  • HDMI port supports multichannel audio output
  • Support for Apple iPhone headset with microphone
  • Built-in speaker

iCommunications

  • Wi-Fi
  • 802.11n Wi-Fi wireless networking;3 IEEE 802.11a/b/g compatible
  • Bluetooth
  • Bluetooth 4.0 wireless technology
  • Ethernet
  • 10/100/1000BASE-T Ethernet (RJ-45 connector)

iConfigure to Order

  • Configure your Mac mini with these options, only at the Apple Online Store.
  • 8GB DDR3 memory upgrade
  • 16GB DDR3 memory upgrade
  • Apple Remote
  • 2.6GHz quad-core Intel Core i7 processor
  • 256GB solid-state drive
  • 1TB Fusion Drive

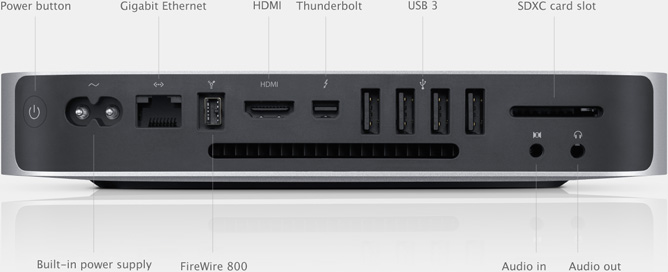

⌁Connections and Expansion

  • Thunderbolt port (up to 10 Gbps)
  • FireWire 800 port (up to 800 Mbps)
  • Four USB 3 ports (up to 5 Gbps)
  • HDMI port
  • SDXC card slot
  • Gigabit Ethernet port
  • Audio in/out
  • IR receiver

iElectrical and Operating Requirements

  • Line voltage: 100-240V AC
  • Frequency: 50Hz to 60Hz, single phase
  • Maximum continuous power: 85W
  • Operating temperature: 50° to 95° F (10° to 35° C)
  • Storage temperature: -40° to 116° F (-40° to 47° C)
  • Relative humidity: 5% to 95% noncondensing
  • Operating altitude: tested up to 10,000 feet
  • Typical acoustical performance, sound pressure level (operator position):4Dual-core model: 12 dBA at idleQuad-core model: 15 dBA at idle
  • Dual-core model: 12 dBA at idle
  • Quad-core model: 15 dBA at idle

iEnvironment

  • Apple takes a complete product life cycle approach to determining our environmental impact. Learn more about Environment
  • Mac mini is designed with the following features to reduce its environmental impact:
  • BFR-free
  • PVC-free5
  • Highly recyclable aluminum enclosure
  • Meets ENERGY STAR 5.2 requirements
  • Rated EPEAT Gold6
  • Apple and the Environment
  • Learn more about Apple’s dedication to reducing the environmental impact of our products and process. Or read our Product Environmental Reports for detailed information on the environmental performance of every Apple product.
  • Recycling
  • Apple takes a holistic view of materials management and waste minimization. Learn more about how to recycle your Mac or PC.

iGraphics

  • Intel HD Graphics 4000

iIncluded Software

  • OS X Mountain Lion: The world’s most advanced desktop operating system. Learn more about latest operating system
  • Mac App Store
  • Safari
  • Mail
  • Messages
  • Calendar
  • Contacts
  • Reminders
  • Notes
  • Time Machine
  • FaceTime
  • Photo Booth
  • Game Center
  • iTunes
  • iLife: iPhoto, iMovie, and GarageBand.

iLimited Warranty and Service

  • Your Mac mini comes with 90 days of free telephone support and a one-year limited warranty. Purchase the AppleCare Protection Plan to extend your service and support to three years from your computer’s purchase date. Only the AppleCare Protection Plan provides you with direct telephone support from Apple technical experts and the assurance that repairs will be handled by Apple-authorized technicians using genuine Apple parts. For more information, visit Apple Support or call 800-823-2775.

iMemory

  • 4GB (two 2GB) of 1600MHz DDR3 memoryConfigurable to 8GB or 16GB.
  • Configurable to 8GB or 16GB.

⚙Processor

  • 2.5GHz
  • 2.5GHz dual-core Intel Core i5 (Turbo Boost up to 3.1GHz) with 3MB L3 cache
  • 2.3GHz
  • 2.3GHz quad-core Intel Core i7 (Turbo Boost up to 3.3GHz) with 6MB L3 cache
  • Configurable to 2.6GHz quad-core Intel Core i7 (Turbo Boost up to 3.6GHz).

iStorage

  • 2.5 GHz
  • 500GB (5400-rpm) hard drive2
  • 2.3GHz
  • 1TB (5400-rpm) hard drive2
  • Configurable to a 256GB solid-state drive or 1TB Fusion Drive.

iVideo Support

  • Support for up to two displays at 2560 by 1600 pixels, both at millions of colors
  • Thunderbolt digital video output
  • Native Mini DisplayPort output
  • DVI output using Mini DisplayPort to DVI Adapter (sold separately)
  • VGA output using Mini DisplayPort to VGA Adapter (sold separately)
  • Dual-link DVI output using Mini DisplayPort to Dual-Link DVI Adapter (sold separately)
  • HDMI video output
  • Support for 1080p resolution at up to 60Hz
  • DVI output using HDMI to DVI Adapter (sold separately)

Mac mini (Late 2012) FAQ

What is the display size of Apple Mac mini (Late 2012)?

Apple Mac mini (Late 2012) has Support for up to two displays at 2560 by 1600 pixels, both at millions of colors; Thunde… with 2560 by 1600 pixel.

What chip does Apple Mac mini (Late 2012) use?

Apple Mac mini (Late 2012) uses 2.5GHz; 2.5GHz dual-core Intel Core i5 (Turbo Boost up to 3.1GHz) with 3MB L3 cache; 2.3G….

What storage capacities are available for Apple Mac mini (Late 2012)?

Available storage capacities include 500GB, 1TB, 256GB.
