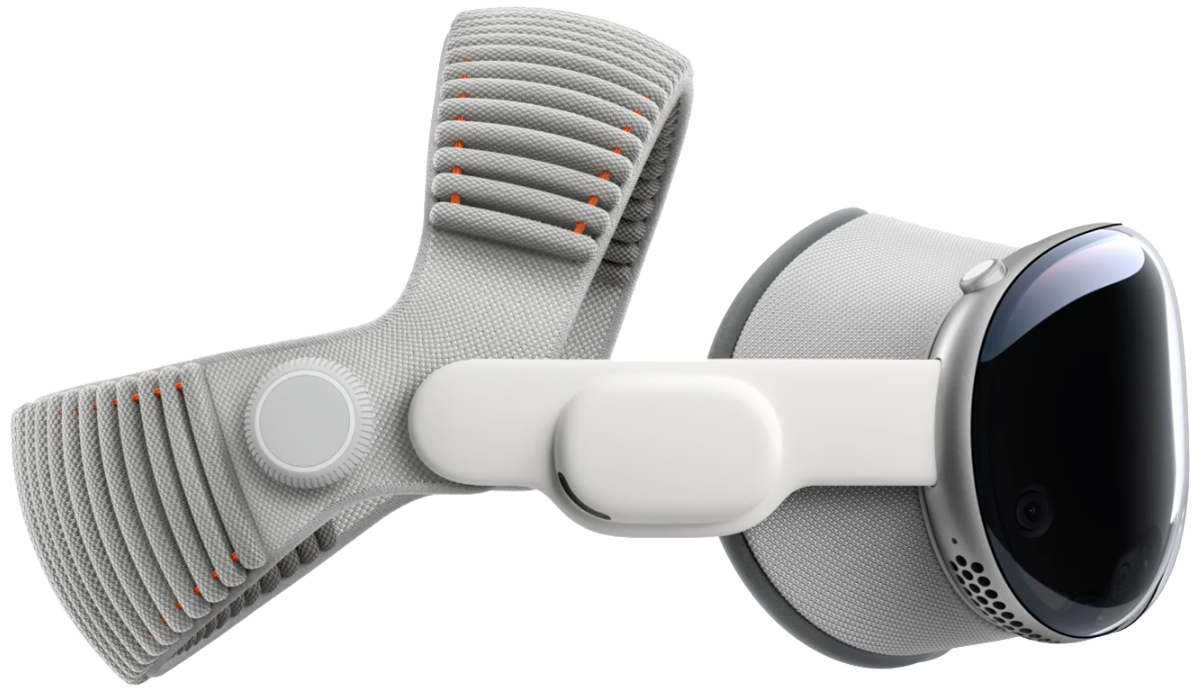

Apple Vision Pro (M5)
Specs / Apple / Apple Vision Pro (M5)

Apple Vision Pro (M5) Specifications

Complete Apple Vision Pro (M5) technical specifications · Released 2025 · model numbers, colors, storage, dimensions and hardware details.

Chip: Apple M5 chip; 10‑core CPU with 4 super cores and 6 efficiency cores; 10‑core GPU; Neural… Display: 23 million pixels; 3D display system; Micro‑OLED; 7.5‑micron pixel pitch; 92% DCI‑P3; Sup… Camera: Stereoscopic 3D main camera system; Spatial photo and video capture; 18 mm, ƒ/2.00 apertu…
Check IMEI / Serial All specs
Display
23 million pixels; 3D display system; Micro‑OLED; 7.5‑micron pixel pitch; 92% DCI‑P3; Supported refresh rates…
Chip
Apple M5 chip; 10‑core CPU with 4 super cores and 6 efficiency cores; 10‑core GPU; Neural Accelerators; Hardware‑accele…
Storage / Colors
256GB, 512GB, 1TB · hearing, mobility, and learning, you can create and do amazing things.
Weight / OS
800 g · visionOS

Apple Vision Pro (M5) technical specifications

This page contains complete technical specifications for Apple Vision Pro (M5), including display, chip, storage, colors, model numbers, dimensions, weight, operating system, connectivity, battery information and other hardware details.

Use this information to compare Apple devices, identify the exact model, check compatibility and verify key hardware features before service, repair, resale or purchase.

▣Display

  • 23 million pixels
  • 3D display system
  • Micro‑OLED
  • 7.5‑micron pixel pitch
  • 92% DCI‑P3
  • Supported refresh rates: 90Hz, 96Hz, 100Hz, 120Hz
  • Supports playback multiples of 24 fps and 30 fps for judder‑free video
  • Video Mirroring
  • Up to 720p AirPlay for mirroring your view in Apple Vision Pro to any AirPlay‑enabled device, including iPhone, iPad, Mac, Apple TV (2nd generation or later), or AirPlay‑enabled smart TV

◉Camera

  • Stereoscopic 3D main camera system
  • Spatial photo and video capture
  • 18 mm, ƒ/2.00 aperture
  • 6.5 stereo megapixels

iSensors

  • Two high‑resolution main cameras
  • Six world‑facing tracking cameras
  • Four eye‑tracking cameras
  • TrueDepth camera
  • LiDAR Scanner
  • Four inertial measurement units (IMUs)
  • Flicker sensor
  • Ambient light sensor

iOperating System

  • visionOS
  • Learn more about Operating System

iAccessibility

  • Accessibility features help people with disabilities get the most out of their new Apple Vision Pro. With built‑in support for vision, hearing, mobility, and learning, you can create and do amazing things.
  • Learn more about Accessibility
  • Features Include
  • VoiceOver
  • Zoom
  • Color Filters
  • Hearing Device Support
  • Closed Captioning
  • Voice Control
  • Switch Control
  • Dwell Control
  • Pointer Control
  • Support for Made for iPhone hearing devices
  • Support for Made for iPhone switch controllers

iIn the Box

  • Apple Vision Pro with Light Seal, Light Seal Cushion, and Dual Knit Band
  • Cover
  • Additional Light Seal Cushion
  • Battery
  • Polishing Cloth
  • 40W Dynamic Power Adapter with 60W Max
  • USB‑C Charge Cable (1.5m)

iApple Vision Pro and the Environment5

  • Progress toward Apple 2030
  • Apple 2030 is our commitment to be carbon neutral for our entire carbon footprint. Our plan to decarbonize products is rigorous and focuses on transitioning to low‑carbon electricity, designing with recycled and low‑carbon materials, and prioritizing lower‑carbon ways of shipping products, like ocean freight.
  • See Apple’s commitment
  • Materials
  • Apple Vision Pro is made with 20% recycled content,6 including:
  • 100% recycled aluminum in the frame and battery enclosure
  • 100% recycled cobalt in the battery
  • 95% recycled lithium in the battery
  • 100% recycled rare earth elements in all magnets
  • 100% recycled gold plating in all Apple-designed printed circuit boards
  • 100% recycled tin solder in all Apple-designed printed circuit boards
  • 100% recycled copper plating in all Apple-designed printed circuit boards
  • Energy
  • Exceeds U.S. Department of Energy requirements for battery charger systems7
  • Packaging
  • 100% fiber-based packaging8
  • Waste
  • No established final assembly sites generate waste sent to landfill as part of Apple’s Zero Waste Program9
  • Smarter chemistry10
  • All of the materials used in Apple products, accessories, and packaging are covered by the requirements of our Regulated Substances Specification, which was one of the first in industry to restrict the use of key substances of concern. See the latest Environmental Progress Report to understand Apple’s recent efforts in phasing out these chemistries.

iAudio Technology

  • Spatial Audio with dynamic head tracking
  • Personalized Spatial Audio and audio ray tracing
  • Six‑mic array with directional beamforming
  • Supports H2‑to‑H2 ultra‑low‑latency connection to AirPods Pro 2 with USB‑C, AirPods Pro 3, and AirPods 4
  • Audio Playback
  • Supported formats include AAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby Digital Plus, and Dolby Atmos
  • Video Playback
  • Supported formats include HEVC, MV‑HEVC, H.264, AV1, HDR with Dolby Vision, HDR10, and HLG

⚡Battery2

  • Up to 2.5 hours of general use
  • Video playback up to 3 hours
  • Apple Vision Pro can be used while charging the battery

iBuilt‑in Apps4

  • App Store
  • Encounter Dinosaurs
  • Files
  • Freeform
  • Keynote
  • Mail
  • Messages
  • Mindfulness
  • Music
  • Notes
  • Passwords
  • Photos
  • Safari
  • Settings
  • Spatial Gallery
  • Tips
  • TV
  • Widgets
  • Books
  • Calendar
  • Clock
  • Home
  • Maps
  • News
  • Podcasts
  • Reminders
  • Shortcuts
  • Stocks
  • Voice Memos

iCapacity1

  • 256GB
  • 512GB
  • 1TB

⚙Chips

  • Apple M5 chip
  • 10‑core CPU with 4 super cores and 6 efficiency cores
  • 10‑core GPU
  • Neural Accelerators
  • Hardware‑accelerated ray tracing
  • 16‑core Neural Engine
  • 153GB/s memory bandwidth
  • 16GB unified memory
  • Apple R1 chip
  • 12‑millisecond photon‑to‑photon latency
  • 256GB/s memory bandwidth

⌁Connectivity and Wireless

  • Wi‑Fi 6 (802.11ax)
  • Bluetooth 5.3

↔Device Weight

  • 26.4–28.2 ounces (750–800 grams)
  • Weight includes Light Seal and counterbalanced Dual Knit Band, and can vary depending on configuration. Separate battery weighs 353 grams.

iElectrical and Environmental Requirements

  • Operating ambient temperature:
  • 32º to 86º F (0º to 30º C)
  • Storage temperature:
  • −4º to 113º F (−20º to 45º C)
  • Relative humidity:
  • 0% to 95%

iInput

  • Hands
  • Eyes
  • Voice
  • Supported Input Accessories
  • Keyboards
  • Trackpads and mouse devices3
  • Game controllers
  • Supported Spatial Accessories
  • Logitech Muse
  • PlayStation VR2 Sense controller

iInterpupillary Distance (IPD)

  • 51–75 mm

iOptic ID

  • Iris‑based biometric authentication
  • Optic ID data is encrypted and accessible only to the Secure Enclave processor
  • Secures personal data within apps
  • Make purchases from the iTunes Store and App Store

Apple Vision Pro (M5) FAQ

What year was Apple Vision Pro (M5) released?

Apple Vision Pro (M5) was released in 2025.

What is the display size of Apple Vision Pro (M5)?

Apple Vision Pro (M5) has 23 million pixels; 3D display system; Micro‑OLED; 7.5‑micron pixel pitch; 92% DCI‑P3; Sup….

What chip does Apple Vision Pro (M5) use?

Apple Vision Pro (M5) uses Apple M5 chip; 10‑core CPU with 4 super cores and 6 efficiency cores; 10‑core GPU; Neural….

What storage capacities are available for Apple Vision Pro (M5)?

Available storage capacities include 256GB, 512GB, 1TB.
