AirPort Express 802.11n (2nd Generation)
Specs / Apple / AirPort Express 802.11n (2nd Generation)

AirPort Express 802.11n (2nd Generation) Specifications

Complete Apple AirPort Express 802.11n (2nd Generation) technical specifications · model numbers, colors, storage, dimensions and hardware details.

Check IMEI / Serial All specs
Display
3.85″
Chip
—
Storage / Colors
—
Weight / OS
240 g · iOS

Apple AirPort Express 802.11n (2nd Generation) technical specifications

This page contains complete technical specifications for Apple AirPort Express 802.11n (2nd Generation), including display, chip, storage, colors, model numbers, dimensions, weight, operating system, connectivity, battery information and other hardware details.

Use this information to compare Apple devices, identify the exact model, check compatibility and verify key hardware features before service, repair, resale or purchase.

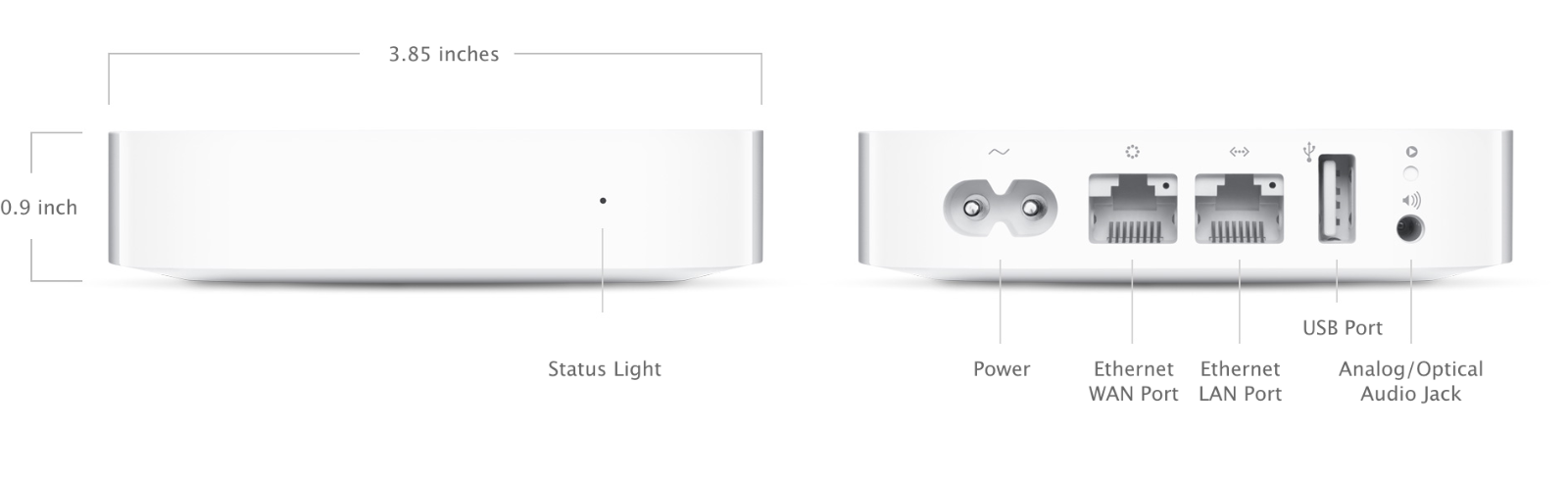

↔Size and Weight

  • Dimensions: 3.85 inches (98 mm) by 3.85 inches (98 mm) by 0.9 inch (23 mm)
  • Weight: 8.5 ounces (240 grams)1

iSystem Requirements

  • Setup and AdministrationiPhone, iPad, or iPod touch with iOS 6 or later and AirPort UtilityMac with OS X Lion v10.7.3 or later and AirPort Utility 6.1Mac with OS X v10.5.7 or later and AirPort Utility 5.6.1PC with Windows 7 or later and AirPort Utility 5.6.1
  • iPhone, iPad, or iPod touch with iOS 6 or later and AirPort Utility
  • Mac with OS X Lion v10.7.3 or later and AirPort Utility 6.1
  • Mac with OS X v10.5.7 or later and AirPort Utility 5.6.1
  • PC with Windows 7 or later and AirPort Utility 5.6.1
  • Wireless Device AccessAny Wi‑Fi-enabled device that uses the 802.11a/b/g/n specification
  • Any Wi‑Fi-enabled device that uses the 802.11a/b/g/n specification
  • Shared Printing with a USB PrinterUSB printerMac with OS X v10.2.7 or laterPC with Windows XP (SP3), Windows Vista (SP2), Windows 7 (SP1), or Windows 8
  • USB printer
  • Mac with OS X v10.2.7 or later
  • PC with Windows XP (SP3), Windows Vista (SP2), Windows 7 (SP1), or Windows 8

iAgency Approval

  • FCC 15 Class B, Canada RSS-210, EN 300-328, EN 301-489, EN 301 893, ARIB STD-T66, RCR STD-T33, AS/NZS 4268: 2003, UL 60950, CSA-C22.2 No. 60950

iAirPort Express and the Environment

  • Apple takes a complete product life-cycle approach to determining our environmental impact. Learn more
  • AirPort Express is designed with the following features to reduce its environmental impact:
  • Brominated flame retardant-free
  • PVC-free4
  • Meets ENERGY STAR 1.0 requirements for Small network equipment
  • Apple and the Environment
  • Learn more about Apple’s dedication to reducing the environmental impact of our products and process. The Apple Product Environmental Specification details the environmental attributes of our products.
  • Recycling
  • Apple takes a holistic view of materials management and waste minimization. Learn more about how to recycle your Mac.

iCompatibility

  • Interoperable with 802.11a, 802.11b, 802.11g, and 802.11n-enabled Mac computers, iOS devices, Apple TV, Windows-based PCs, and other Wi‑Fi devices
  • NAT, DHCP, PPPoE, VPN Passthrough (IPSec, PPTP, and L2TP), DNS Proxy, SNMP, IPv6 (6to4 and manual tunnels)

iElectrical and Environmental Requirements

  • 100-240V AC, 50-60Hz; input current: 0.2 amp
  • Operating temperature: 32° to 95° F (0° to 35° C)
  • Storage temperature: -13° to 140° F (-25° to 60° C)
  • Relative humidity (operating): 20% to 90%, noncondensing
  • Operating altitude: tested up to 10,000 feet (3000 m)
  • Maximum storage altitude: 15,000 feet

iInterfaces

  • Simultaneous dual-band 802.11n wireless
  • 10/100BASE-T Ethernet WAN port for connecting a DSL modem, cable modem, or Ethernet network
  • 10/100BASE-T Ethernet LAN port for connecting a computer, Ethernet hub, or networked printer
  • USB 2 port for connecting a USB printer
  • 3.5-mm audio minijack for analog or optical digital sound3

iNumber of Users

  • 50

iSecurity

  • Wi‑Fi Protected Access™ (WPA/WPA2)2
  • WPA/WPA2 Enterprise2
  • Wireless security (WEP) configurable for 40-bit and 128-bit encryption
  • MAC address filtering
  • NAT firewall
  • 802.1X, PEAP, LEAP, TTLS, TLS, FAST
  • Time-based access control

iSoftware and Documentation

  • Printed documentation included
  • AirPort Utility for Mac available for free download
  • AirPort Utility for iOS available for free download
  • Bonjour for Windows available for free download

⌁Wireless

  • IEEE 802.11a/b/g/n
  • Simultaneous dual-band 2.4GHz and 5GHz
  • Radio output power: 20.5 dBm maximum (varies by country)
  • Channels 1-11, 36-116, and 132-165 approved for use in the United States and Canada
  • Channels 1-13, 36-64, and 100-140 approved for use in Europe and Japan
  • Channels 1-13, 36-64, and 149-165 approved for use in Australia, Hong Kong, and New Zealand
